12 Fiber Teraflex Bend Resistant Multimmode Loose Tube SJSA Cable 12012PG01
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

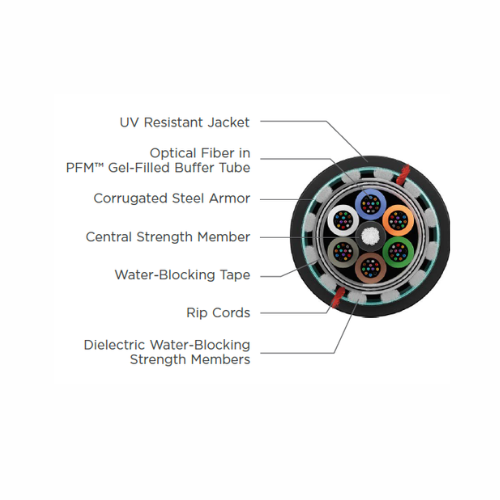

TeraFlex Bend Resistant Laser Optimized 50/125 Multimode loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. Optical fibers are placed inside filled buffer tubes containing PFM gel. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL).

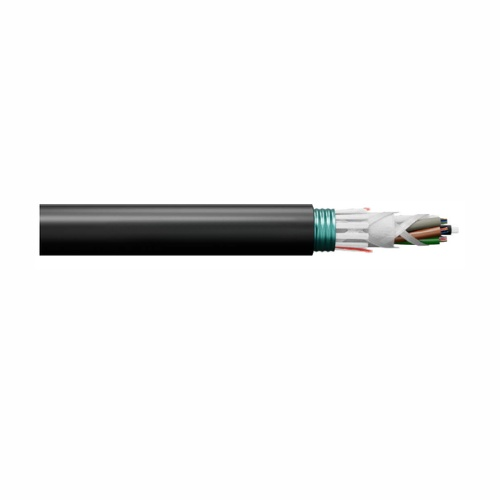

The core is wrapped with flexible, strong members covered with water-blocking tape. Corrugated steel armor is applied and then encased in a black jacket. Rip cords are included under the armor for ease of entry. TeraGain 10G fibers support 10 GB Ethernet applications in 550 meters.
Also Known as :
12 fiber cables, outside plant cables, singlemode cable, fiber optic cables, TeraGain Fiber Cable, TeraFlex Bend Resistant Cable, Ethernet Application Cable.
Specifications :
| Fiber Count | 12 |
| Fiber Type | OM3 Multimode |
| TeraGain |
Core: 50 µm (10G-550) |
| Strength Member | Water-blocking dielectric |
| Buffer Construction | PFM Gel Filled |
| Nominal Diameter | 0.46 inch (11.7 mm) |
| Tensile Loading | Install: 600 lbs Long-Term: 200 lbs |
| Minimum Bend Radius | Install: 9.2 inch Long-Term: 4.6 inch |
| Jacket Color | Black |
| Part Number | 12012PG01 |
Standards Compliance:
• Telcordia GR-20-CORE
• RDUP PE-90 Designation MLT
• ICEA S-87-640-2011
• RoHS-compliant
Applications:
• Direct bury, underground duct and lashed aerial
• Trunk, distribution and feeder cable
• Local loop, metro, long-haul and broadband networks
Benefits:
• High fiber density
• Multiple network applications
• Improves compressive strength and rodent protection
• Non-sticky gel speeds fiber access and clean-up
