About:

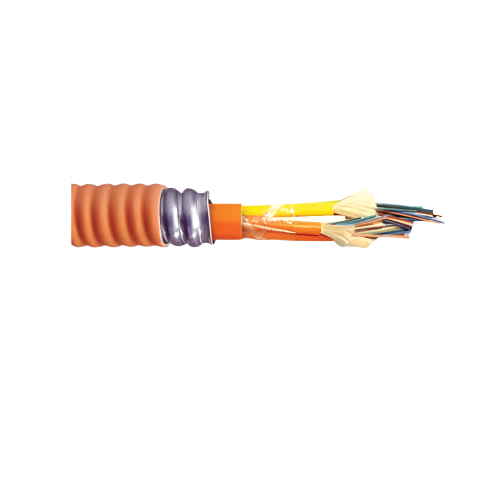

Interlock Armored Optical Fiber Cables provide for an extremely well protected cable package ideally suited for harsh environments. The armor is available in aluminum or steel and comes with either an OFCR (riser) or OFCP (plenum) rating. This design offers the system designer a product that can be installed in high traffic areas where added mechanical protection and security are required. The flexible interlock armored cable design is also popular for retrofit applications and eliminates the need  to install rigid conduit while still meeting building code guidelines.

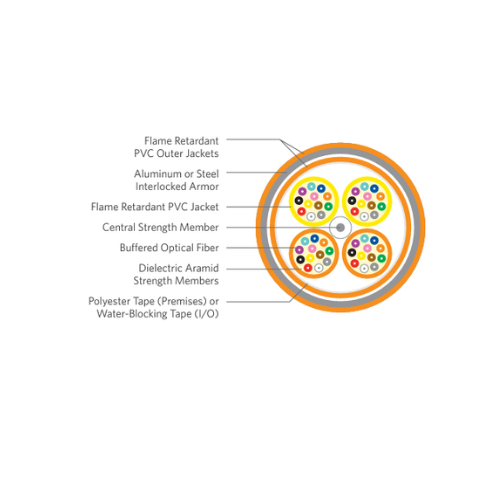

Interlock Armored: Flexible, heavy duty interlocking aluminum or steel tape helically applied over the inner cable core; further protection is provided by an optional flame retardant outer jacket
Performance Compliance: UL 1569, UL 1651, CSA C22.2 No. 232, UL 1666, NFPA 262, Telcordia GR-409-CORE, Issue 1, Telcordia GR-409-CORE, Issue 2, ANSI/ICEA S-83-596, ANSI/ICEA S-104-696 ANSI/TIA-568-C.3 RoHS-compliant.

Also Known as:

12 Fiber Plenum Cable, Reduced Water Peak (RWP), Singlemode Optical Fiber Cable, Non-Riser Cable, Non-Riser Singlemode, OS1 Plenum Cable, OS1 Tight Buffer, OS1 Interlock Armor Cable.

Applications:

• Intrabuilding backbones
• Conduit pathways
• Service entrance to communication closets

Benefits:

• Reduce incidences of circuit disruption due to rodents or mechanically abusive applications
• Contributes toward  LEED
• Eliminates the need for multiple cables for installation

Features:

• Thick, flexible metallic armor
• Flame retardant, UL Listed designs

Specifications:
