12 Fiber 62.5 Multimmode Loose Tube Single Jacket Single Armor Cable 120126G01

Product Information

Specification

About :

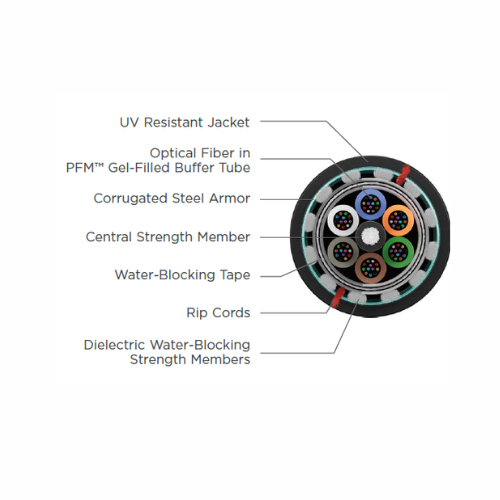

TeraGain 62.5/125 Multimode loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. Optical fibers are placed inside filled buffer tubes containing PFM gel. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL).

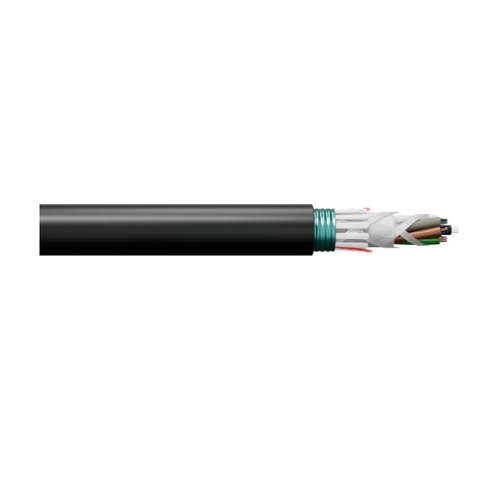

The core is wrapped with flexible, strong members covered with water-blocking tape. A corrugated steel armor is applied and then encased in a black jacket. Rip cords are included under the armor for ease of entry.

Also Known as :

12 fiber cables, outside plant cables, singlemode cables, fiber optic cables.

Specifications :

Standards Compliance:

• Telcordia GR-20-CORE
• RDUP PE-90 Designation MLT
• ICEA S-87-640-2011
• RoHS-compliant

Applications:

• Direct bury, underground duct and lashed aerial
• Trunk, distribution and feeder cable
• Local loop, metro, long-haul and broadband networks

Benefits:

• High fiber density
• Multiple network applications
• Improves compressive strength and rodent protection
• Non-sticky gel speeds fiber access and clean-up
