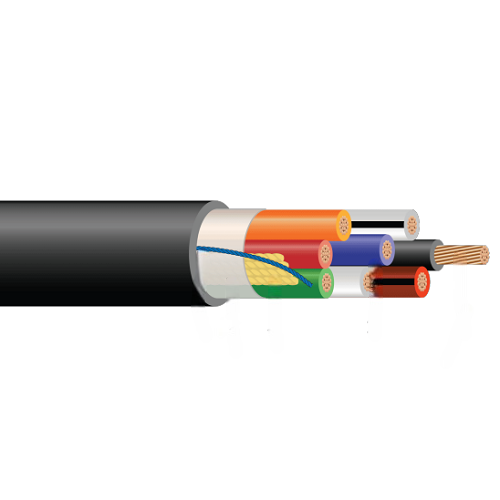

12 AWG 7C Copper PE/PVC Insulation PVC Jacket Control Cable 1000V

12 AWG 7C Copper PE/PVC Insulation PVC Jacket Control Cable 1000V

Applications:

The 600 Volt control cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions.

Control Cable 600 Volt Copper Conductors, Polyethylene and Polyvinyl Chloride (PE/PVC) Insulation Polyvinyl Chloride (PVC) Jacket, Control Cable Conductor Identification Method 1 Table 1. Silicone Free

Also Known As:

12 AWG 7C Multi conductor control cable, Copper control cable, PVC insulated control wire, PE insulation control cable, PVC jacket copper cable, Multi core copper control wire, Industrial control cable PVC, 12 AWG 7C Electrical multi conductor cable, Copper PVC sheathed control cable, 12 AWG 7C Flexible control cable PVC jacket.

Standards:

• ASTM B3 Standard Specification for Soft or Annealed Copper Wire
• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• CSA CSA marking is available upon request
• ICEA S-58-679 Control Cable Conductor Identification Method 1 Table 1
• ICEA S-73-532 Standard for Control, Thermocouple Extension and Instrumentation Cables
• ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
• IEEE 1202 FT4 Vertical Tray Flame Test (70,000 Btu/hr) and ICEA T-29-520 - (210,000 Btu/hr)
• VW-1 (Vertical-Wire) Flame Test

Construction:

Conductor:
7 strands class B compressed bare copper per ASTM B3 and ASTM B8

Insulation:
Polyethylene (PE) 20 Mils thick and Polyvinyl Chloride (PVC) 10 Mils thick for all cable sizes

Filler:
Polypropylene filler on cables with 5 or less conductors

Binder:
Polyester flat thread binder tape applied for cables with more than 5 conductors

Rip Chord:
Rip chord for ease of jacket removal

Overall Jacket:
Polyvinyl Chloride (PVC) Jacket

Specifications:

• Size: 12 AWG
• Number of Conductors: 7
• Diameter Over Conductor (inch):  0.087
• Insulation Thickness (Mil): 45
• Jacket Thickness (Mil): 60
• Approx. OD (In): 0.668
• Copper Weight (Lbs/1000'Ft):  143
• Approx. Weight (Lbs/1000'Ft):   272
• DC Resistance Ω /1000ft:  1.660
• AC Resistance @ 90°C Ω /1000ft: 2.075
• Min Bending Radius (In): 2.7
• Allowable Ampacity At 60°C (Amp):  14
• Allowable Ampacity At 75°C (Amp):   17
• Allowable Ampacity 90°C (Amp):  20
