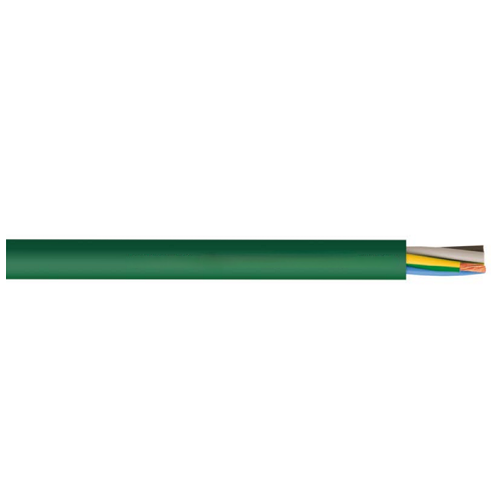

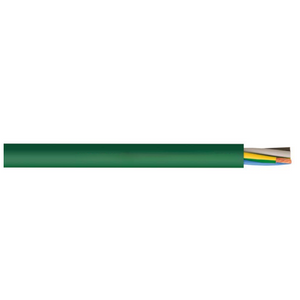

12 AWG 5C HELUPOWER 11008149 Green 1100-RZ1-K LS0H Flexible Connection Cable

12 AWG 5C HELUPOWER 11008149 Green 1100-RZ1-K LS0H Flexible Connection Cable

Applications:

Suitable for fixed power supply installations in public and commercial buildings or in power distribution networks where a high degree of safety is required. Suitable for indoor and outdoor use, for laying in tubes and pipes and suitable for direct burial.

Also Known As:

12 AWG 5C HELUPOWER LS0H cable, Flexible connection cable LS0H, Green LS0H cable, LS0H flexible cable, HELUPOWER flexible cable, 12 AWG 5C LS0H direct burial cable, Low smoke cable LS0H, Flexible power supply cable, Flame retardant LS0H cable, 12 AWG 5C Outdoor flexible connection cable.

Technical Data:

Connection cable acc. to UNE 21123-4

Temperature range
flexible 0°C to +90°C
fixed -15°C to +90°C

Permissible operating temperature of the conductor
+90°C

Short circuit temperature at the conductor
+250°C (Short circuit temperature max. 5 s)

Nominal voltage
AC U0/U 600/1000 V

Max. permissible operating voltage
alternating current (AC) conductor/earth 700 V three-phase alternating current (AC) conductor/conductor1200 V direct current (DC) conductor/ earth 900 V direct current (DC) conductor/ conductor 1800 V

Test voltage core/core
3500 V

Minimum bending radius
<25 mm: 4x Outer-ø
25-50 mm: 5x Outer-ø
>50 mm: 6x Outer-ø

Cable Structure:

• Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
• Core insulation: XLPE acc. to UNE-HD 603-1 (compound type DIX 3)
• Core identification acc. to DIN VDE 0293-308,
1 core(s): black
2 - 5 core(s): colour coded
• Protective conductor: starting with 3 cores,
G = with protective conductor GN-YE,
x = without protective conductor
• Cores stranded with optimal lay lengths
• Outer sheath: Polyolefin acc. to UNE 21123-4 (compound type DMZ-E)
• Sheath colour: green
• Length marking: in meters

Properties:

• resistant to: oil, UV radiation
• for outdoor use
• direct burial
• halogen-free
• the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
• reduced fire propagation, reduced release of corrosive and toxic gases

Tests:

• halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1
• corrosiveness of combustion gases acc. to DIN VDE 0482-754-2 / DIN EN 60754-2 / IEC 60754-2
• flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2
• bundle fire test acc. to DIN VDE 0482-332-3-24 / DIN EN 60332- 3-24 / IEC 60332-3-24 (Cat. C)
• smoke density acc. to DIN VDE 0482-1034-1+2 / DIN EN 61034- 1+2 / IEC 61034-1+2
• oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404
• UV-resistant acc. to UNE 211605
• CPR-class: Cca s1b d1 a1

Notes:

• the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only

Specification:

• Size : 12 AWG
• No. cores x cross-sec. mm²: 5 G 4
• Outer-Ø min - max mm: 13.7 - 15.1
• Cu-weight kg/km: 192.0
• Weight kg/km, approx: 315.0
