12-10 AWG Pan-Term Loose Piece Fork PNF10-10LF-L (Pack Of 50)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specification:
| Fork Type | Locking Fork |
| Product Type | Locking Fork Terminal |
| Stud Size | #10 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Sub Brand | Pan-Term |
| Barrel Type | Funnel |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Nylon |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.3 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Overall Length (mm) | 26.7 |
| Overall Width (mm) | 8.6 |
| Seam Type | Butted |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part No. | PNF10-10LF-L |
Description:

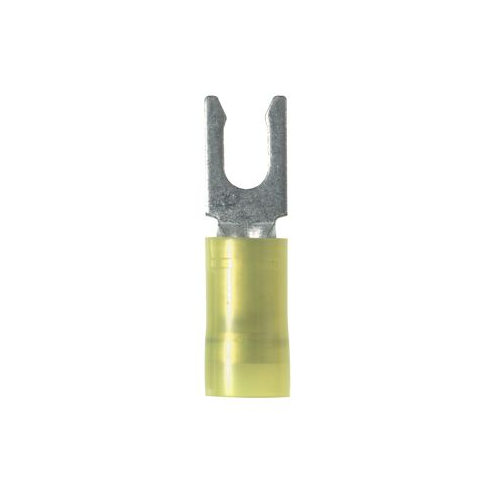

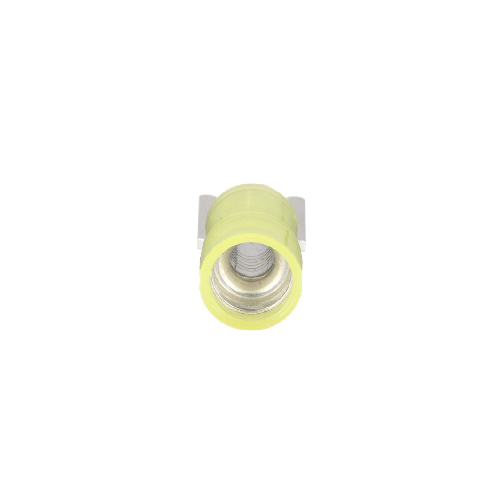

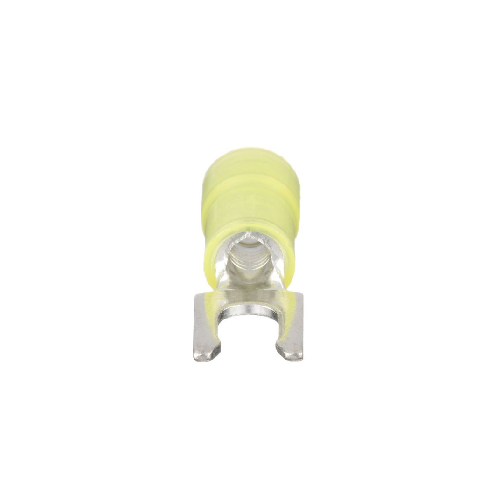

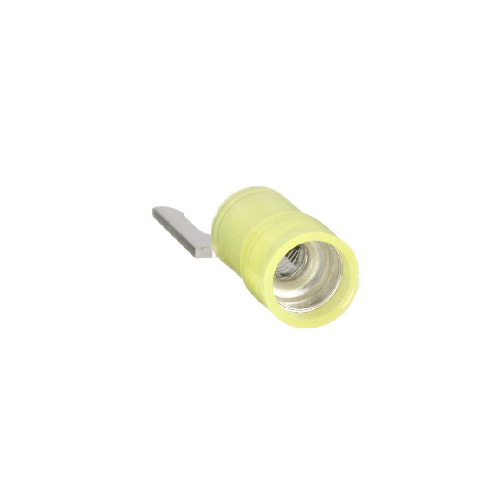

Locking Fork Terminal, nylon insulated, funnel entry, 12-10 AWG, #10 stud size, standard package.
Features :
Locks in place for secure connection Fork design provides for fast and easy installation, without the need to remove fastener Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications Internal barrel serrations assure good wire contact and maximum tensile strength
