1113 Finch - Aluminum Conductor Steel Reinforced

1113 Bluejay - Aluminum Conductor Steel Reinforced

Applications:

Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

Also Known As:

1113 MCM ACSR conductor overview, ACSR vs AAC vs AAAC, ACSR conductor types, ACSR conductor ampacity, ACSR conductor materials, 1113 MCM ACSR conductor maintenance. ACSR power transmission cable, 1113 MCM Aluminum conductor steel cable.

Standards:

Southwire's ACSR bare conductor meets or exceeds the following ASTM specifications:
• B230 Aluminum 1350-H19 Wire for Electrical Purposes.
• B232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).
• B498 Zinc-Coated (Galvanized) Steel Core Wire for Use in Overhead Electrical Conductors.
• B500 Metallic Coated Stranded Steel Core for Use in Overhead Electrical Conductors.

Construction:

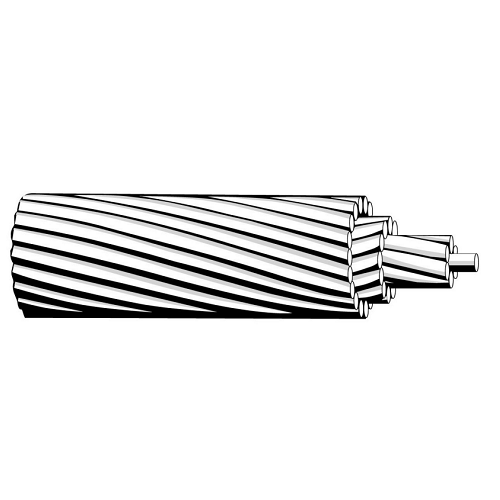

• Aluminum 1350-H19 wires, concentrically stranded about a steel core. Standard core wire for ACSR is class A galvanized.
• Class A core stranding is also available in zinc-5% aluminum-mischmetal alloy coating.
• For aluminum-clad (AW) ACSR, please refer to the ACSR/AW catalog sheet
• Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
• ACSR conductor is also available in non-specular

Specifications:

• Size : 1113 MCM
• Stranding (AL/STL): 54/19
• Diameter Inches: Aluminum: 0.1436
• Diameter Inches: Steel: 0.0861
• Diameter Inches: Steel Core: 0.4307
• Diameter Inches: Cable OD: 1.292
• Weight lb/1000FT: Aluminum: 1053
• Weight lb/1000FT: Steel: 375
• Weight lb/1000FT: Total: 1429
• Content %: Aluminum: 73.72
• Content %: Steel: 26.28
• Rate Breaking Strength (lbs.): 39100
• OHMS/1000ft: DC at 20ºC: 0.0154
• OHMS/1000ft: AC at 75ºC: 0.0197
• Ampacity: 1093 Amps
