100-Plate Brazed Plate Heat Exchanger for Water-to-Water Heating and Cooling Systems

Product Information

Specification

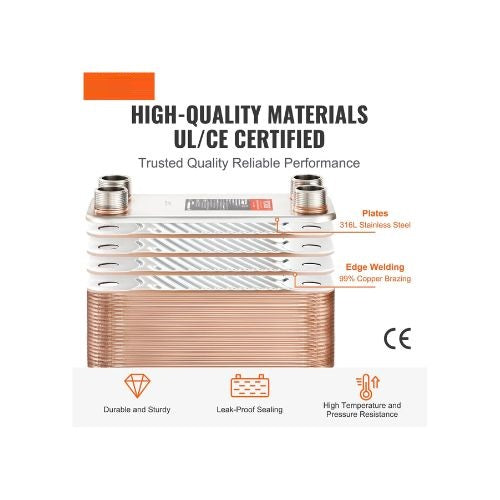

Premium-Grade Construction:

Crafted from durable 316L stainless steel with 99% copper brazing at all contact points and edges, creating a strong, corrosion-resistant, and leak-resistant structure capable of handling high pressure and elevated temperatures. CE certified for dependable performance.

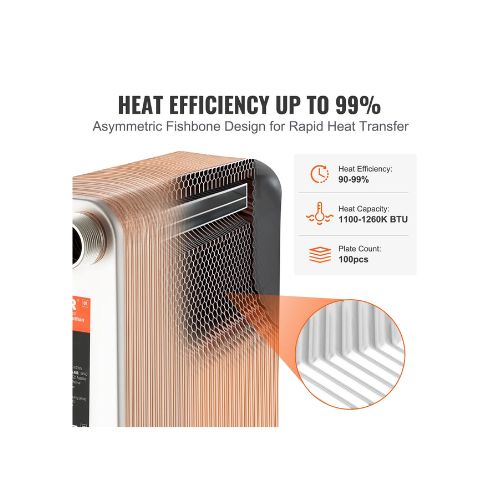

High-Efficiency Heat Transfer:

The stainless steel plates feature an asymmetrical herringbone corrugation design that creates strong turbulence for faster and more efficient heat exchange. Delivering up to 99% thermal efficiency and producing approximately 1100-1260K BTU per hour, it helps reduce pump workload and lower energy consumption.

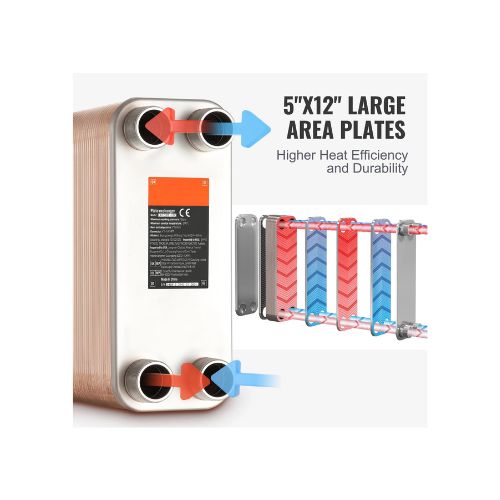

Large Heat Exchange Surface:

Designed with 5" x 12" plates and up to 100 brazed plates, this heat exchanger provides an expanded transfer area for improved heating and cooling performance. Suitable for operating temperatures ranging from -292℉ to 392℉.

Leak-Resistant and Reliable Design:

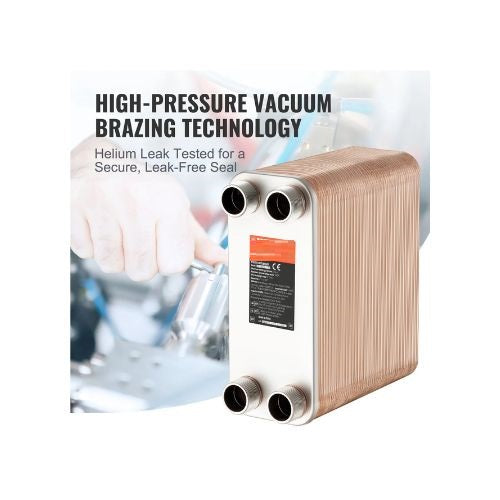

Manufactured using high-pressure vacuum brazing technology and rigorously helium leak tested to minimize the risk of micro-leaks, ensuring long-lasting durability and reliable operation.

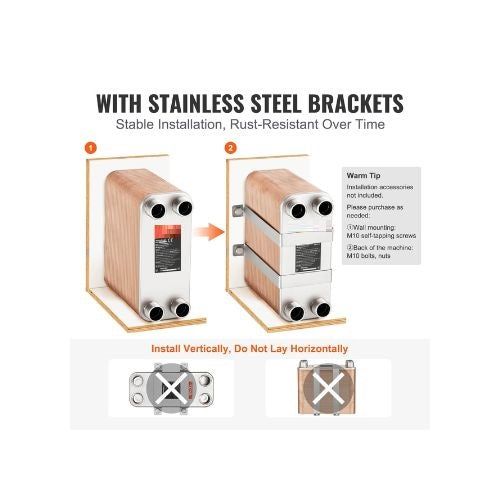

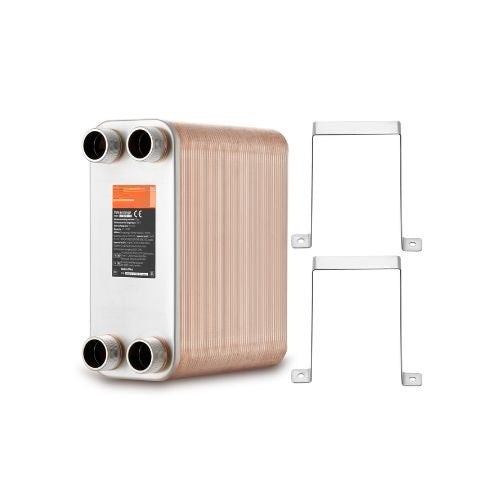

Secure and Stable Mounting:

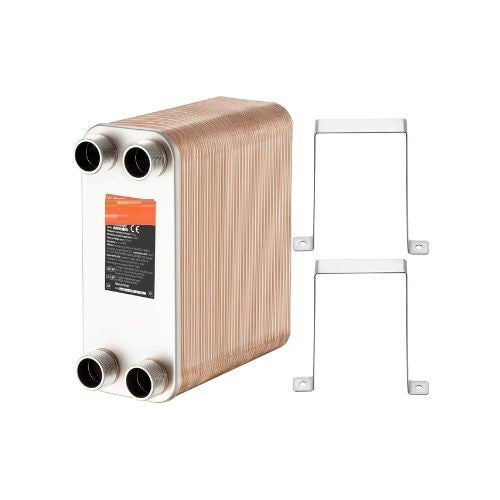

Comes with two 304 stainless steel mounting brackets for enhanced corrosion resistance, providing stable, secure, and convenient installation in a variety of heating and cooling systems.
