100' Black Polypropylene Spiral Wrap T100P-C0
About:

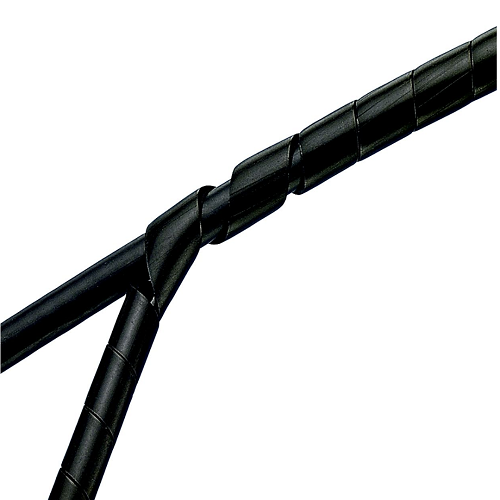

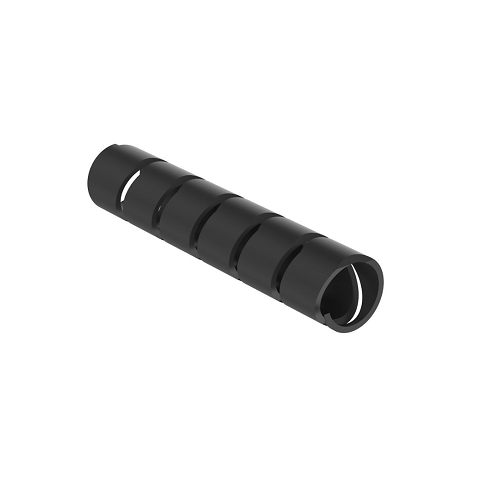

The T100P-C0 Weather Resistant Polypropylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 239°F (115°C). 1" (25.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.875" to 6" (22.2 mm to 152.4 mm). Color Black.
Also Known As:
Spiral Wrap, Polypropylene Material, Abrasion-Resistant, Weather-Resistant, Black Color
Features:
Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. The spiral wrap is reusable.
Application:
Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Specification:
| Product Type | Spiral Wrap |
| Color | Black |
| Environment | Indoor and Outdoor |
| Flammability Rating | UL94-HB |
| Material | Polypropylene |
| Resistance Properties | Abrasion-Resistant, Weather-Resistant |
| Maximum Bundle Diameter (In.) | 6 |
| Maximum Bundle Diameter (mm) | 152.4 |
| Minimum Bundle Diameter (In.) | 0.875 |
| Minimum Bundle Diameter (mm) | 22.2 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Outer Diameter (In.) | 1 |
| Outer Diameter (mm) | 25.4 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Wall Thickness (In.) | 0.03 |
| Wall Thickness (mm) | 0.76 |
| Part No. | T100P-C0 |
