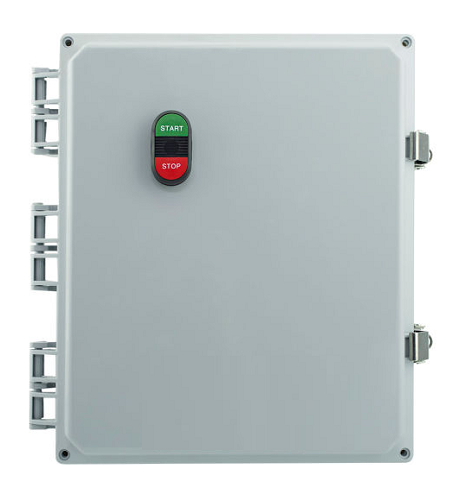

100-250V NEMA 4X Enclosed Motor Starter 38A 1PH Start/Stop AF3816P3M-3L
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Height | 13 |
| Depth | 9 |
| Width | 13 |
| Full Load Amps @ 115V | 38 FLA |
| Voltage | 100-250 V |
| Phase | Single Phase |
| Enclosure Material | Polycarbonate |
| Operating Mode | Start/Stop Butttons |
| Color | Gray |
| Overload Max Amps | 29-35 A |
| Manufacturers Part Number | AF3816P3M-3L |
| Brand | Springer Controls |
100-250V NEMA 4X Enclosed Motor Starter 38A 1PH Start/Stop AF3816P3M-3L
Description:
Springer controls manufactures a complete line of IEC enclosed AC motor starters up to 60HP or 80A. Assembled motor starters consist of a contactor, overload relay and a NEMA 4X rated polycarbonate enclosure. To select the proper starter for your requirements. Be sure to confirm whether it is 1phase or 3phase power to the motor. Choose a starter rated for current (Amps) higher than the FLA of your motor.
Then select your starter based on the following optional criteria.
Features:
38A
1 Phase
Remote Start Terminals
Start/Stop
100-250V AC/DC Coil
29-35A O/L
NEMA 4X Poly
38A
1 Phase
Remote Start Terminals
Start/Stop
100-250V AC/DC Coil
29-35A O/L
NEMA 4X Poly
