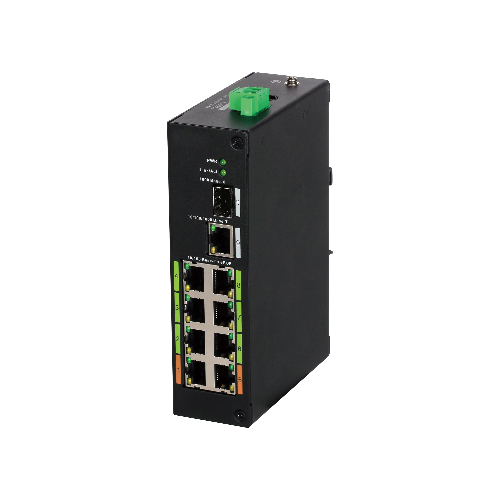

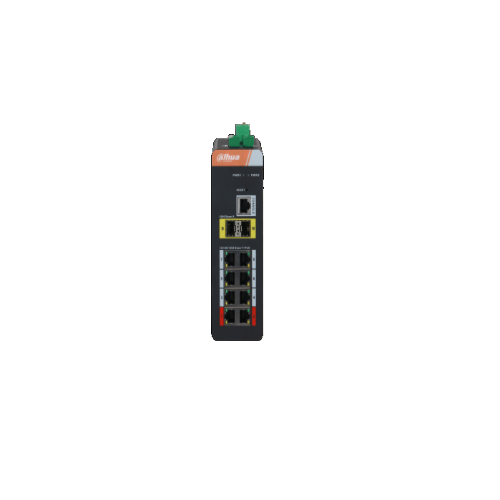

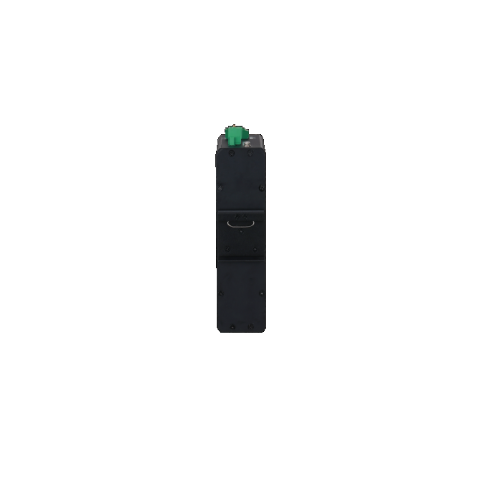

10-port 8-port PoE (Managed) With Gigabit Industrial Switch DH-PFS4210-8GT-DP
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specification :
| Included Power Adapter | No |
| PoE | Yes |
| Ethernet Port | 8 |
| Optical Port | 2 |
| Ethernet Port Speed | 10 Mbps/100 Mbps/1000 Mbps |
| Optical Port Speed | 1000 Mbps |
| Power Supply Mode | 48 V–57 V DC |
| Operating Temperature | –40 °C to +75°C (–40 °F to +167 °F) |
| Operating Humidity | 10%–90% (RH) |
| Power Consumption | Idling: ≤ 6 W Full load: 120 W |
| Switching Capacity | 28 Gbps |
| PoE Protocol | IEEE 802.3af (PoE); IEEE 802.3at (PoE+); Hi-PoE; IEEE 802.3bt |
| PoE Power | Port 1-2: ≤ 90 W Port 3-8: ≤ 30 W Total: ≤ 120 W |
| PoE Power Consumption Management | Power consumption management PoE power on and off Power off when PoE power is overloaded Green PoE |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Product Dimensions | 125.4 mm × 53.5mm ×175.0 mm (4.9” × 2.1”× 6.9") (L × W × H) |
| Packing Dimensions | 254 mm × 287 mm × 101 mm (10.00” × 11.3”× 3.97") (L × W × H) |
| Part No | DH-PFS4210-8GT-DP |
DESCRIPTION :
The device is a layer-2 switch. Equipped with high performance switching engine and large buffer memory, it features low transmission delay and high reliability. The solid and sealed all-metal case design and efficient surface heat dissipation make it can work in the environment from –40 °C to +75 °C. The protection for power input end overcurrent, overvoltage and EMC can effectively resist the interference from static electricity, lightning, and pulse. Redundant power supply guarantees stable operation for the system. With Telnet, WEB management, SNMP and other functions, the device can be remotely managed. It can directly connect to iLinks-View.
FEATURES :
⦿ 250 m long-distance PoE transmission (10 Mbps).
⦿ Supports IEEE802.3af, IEEE802.3at, Hi-PoE and IEEE802.3bt(red port) standards.
⦿ All-gigabit port design.
⦿ Supports STP, RSTP, and MSTP.
⦿ PoE Watchdog.
⦿ Desktop mount and DIN-rail mount.
⦿ IEEE802.1Q-based VLAN configuration.
⦿ Manual link aggregation and static LACP.
Download PDF Spec Sheet
