1' USB to RS-232 Serial DB9 Adapter Cable Up to 920kbps W/ COM Retention

Product Information

Specification

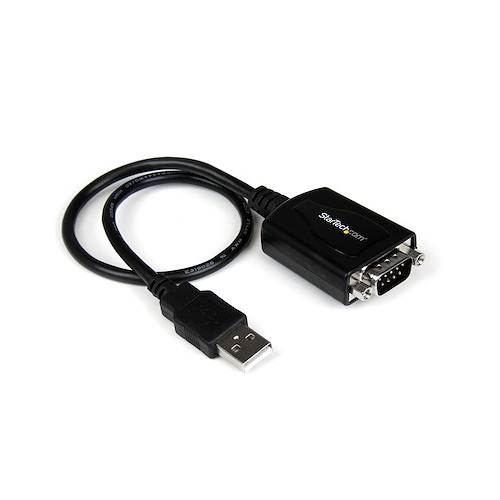

1' USB to RS-232 Serial DB9 Adapter Cable Up to 920 kbps with COM Retention

Applications:

• Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
• Connect, monitor and control industrial/automotive sensors and equipment
• Connect barcode scanners, receipt printers and other pointof-sale devices
• Connect a satellite receiver, serial modem, or PDA with serial sync
• Connect and program LED and Digital signage boards with serial communication ports

Description:

The ICUSB232PRO 1 ft USB to RS232 Serial DB9 Adapter Cable with COM Retention provides a reliable, professional-grade solution for connecting legacy or industrial RS232 devices to modern laptops or desktops via USB, eliminating the need to replace existing peripherals. Designed for convenience, it features COM port retention that stores assigned values in nonvolatile memory, ensuring the same port is automatically reassigned even after disconnection or when switching USB ports. Offering broad compatibility with Windows, Linux, and Mac OS, this adapter delivers a versatile and cost-effective way to integrate legacy serial devices into today’s USB-enabled systems

Advantage:

• COM port settings are retained for serial devices plugged into different USB ports, saving time
• Easy plug-and-play installation with our USB-powered adapter—no power outlet required

Features:

• USB to Straight-Through RS232 Serial Adapter
• COM Port assignments maintained across reboot
• Supports data transfer rates of up to 920 kbps
• Powered by an available USB port—no external power adapter required
• Provides dual buffers for upstream and downstream data transfer
• Supports remote wake-up and power management control
• Supports automatic handshake mode

Hardware:

• Ports: 1
• Interface: Serial
• Bus Type: USB 2.0
• Port Style: Cable Adapters
• Chipset ID: Prolific - PL2303GT

• Connector Type(s):

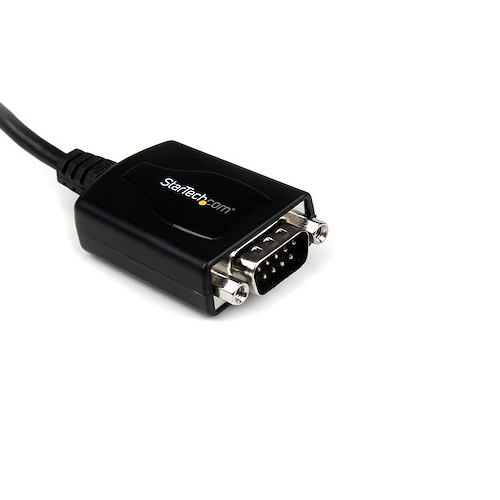

1 - DB-9 (9-pin, D-Sub)

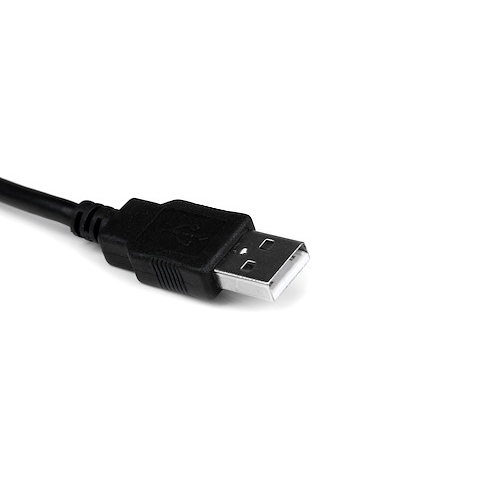

1 - USB Type-A (4 pin) USB 2.0

Environmental:

• Operating Temperature: -10°C to 80°C (14°F to 176°F)
• Storage Temperature: -20°C to 100°C (-4°F to 212°F)
• Humidity: 5~85% RH

Performance:

• Serial Protocol: RS-232
• Max Baud Rate: 921.6 Kbps

Software:

• OS Compatibility:

Windows PocketPC 2003/2000, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server 2003, 2008 R2, 2012, 2016, 2019, macOS 10.6 to 10.15, 11.0, 12.0, and Linux 2.4.x to 4.19.x LTS Versions only
