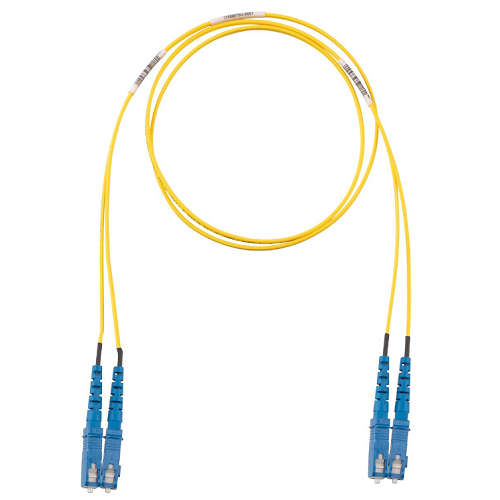

1 Meter 2 Fiber Opti-Core Optic Patch Cord Pigtail OS1/OS2 SC Duplex F923RSNSNSNM001

Product Information

Specification

About:

This is a 1-meter long fiber optic patch cord equipped with two single-mode fibers designed for OS1/OS2 compatibility. It features an SC duplex connector on one or both ends, suitable for bidirectional communication.

Also Known As:

• SC Duplex OS1/OS2 single-mode patch cord
• SC duplex fiber optic cable
• Fiber optic jumper with SC connectors
• 1M single-mode fiber pigtail

Common Applications:

• Data center interconnects for linking servers, switches, and storage with single-mode fiber optic equipment.
• Telecom networks for connecting fiber optic lines to transmission equipment.
• Networking tasks in enterprise environments, such as connecting routers or switches in a structured cabling system.
• As a jumper to connect fiber optic terminations or to link the fiber patch panel to network equipment.
• In FTTH (Fiber to the Home), FTTP (Fiber to the Premises), or FTTB (Fiber to the Building) deployments for short-distance connections.

Standards:

• OS1/OS2: Standards that specify performance for single-mode optical fiber cabling systems. OS1 is optimized for indoor use, and OS2 for outdoor use, with higher performance over longer distances.

• IEC 60793-2-50: The standard that classifies optical fiber types.

• TIA/EIA-568: This includes the performance criteria for telecommunications cabling systems.

• ITU-T G.652: The standard that provides recommendations for the characteristics of single-mode optical fibers.

Construction:

• Core: The innermost part of the fiber where the light signal is transmitted.

• Cladding: Surrounds the core and reflects the light back into it, maintaining efficient signal transmission.

• Jacket: The protective outer covering that helps prevent physical damage and environmental impacts.

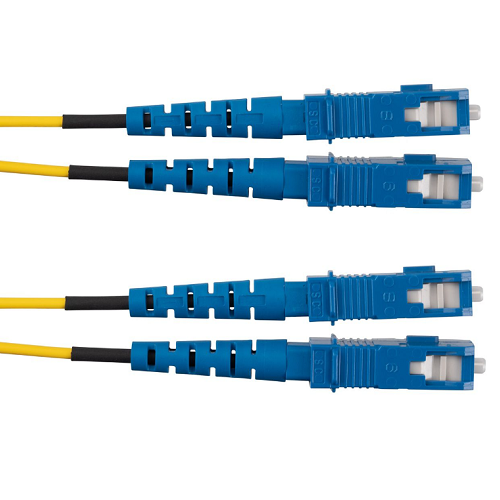

• Connectors: SC (Subscriber Connector) connectors are known for their push-pull design, ensuring a secure and reliable connection. Duplex refers to a pair of connectors, allowing for two-way communication.

Features:

• Precision Polishing: SC connectors often have UPC (Ultra Physical Contact) or APC (Angled Physical Contact) polishing to ensure a superior connection interface.

• High Return Loss: To prevent signal reflection, which is important for maintaining the quality of signal transmission.

• Low Insertion Loss: To minimize signal attenuation when the patch cord is connected to equipment or another cable.

• Compliance with Industry Standards: To ensure compatibility with other standardized components and safety requirements.

• Robust Design: Despite the short length, the cable is built to maintain integrity and performance under typical installation and operating conditions.

Specification:
