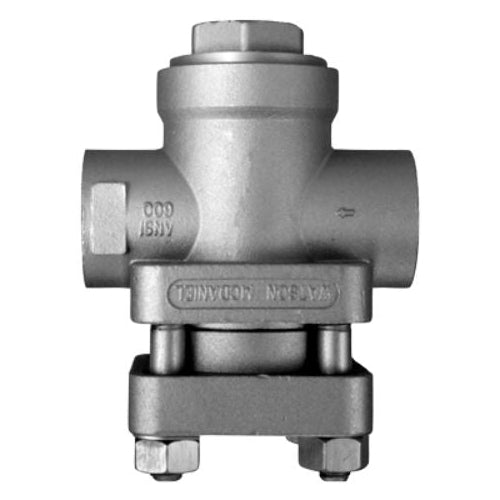

1"High Pressure Thermodynamic Steam Trap Socket Weld TD900LS-14-SW

Product Information

Specification

Description:

The TD900S steam traps are engineered to operate at pressures up to 900 PSIG, making them ideal for drip applications such as draining condensate from steam mains and supply lines. They feature a replaceable internal mechanism, allowing for convenient maintenance without removing the trap body from the system. Each unit includes an integral strainer to protect against dirt and scale accumulation. Designed for durability, the TD900S is built to endure outdoor conditions, offers excellent freeze resistance, and performs reliably in superheated steam environments.

Features:

• High-pressure applications up to 900 PSIG.
• Trap will function in any orientation (horizontal preferred).
• Freezeproof when trap is piped in a vertical orientation for complete drainage of condensate.
• Suitable for superheated steam.
• A single trap model will operate over the entire pressure range (20-900 PSIG).
• Integral strainer to protect trap from contamination.
• Hardened stainless steel seat and disc for extended service life even at extremely high pressures.

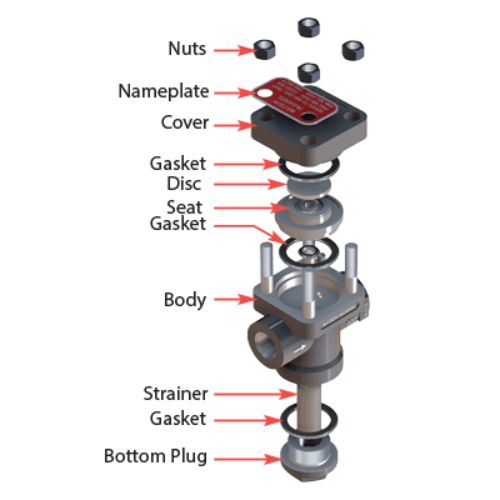

• Quick-change seat and disc for easy in-line repair.
