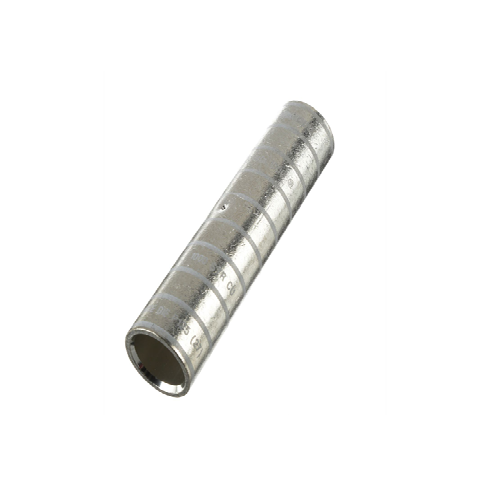

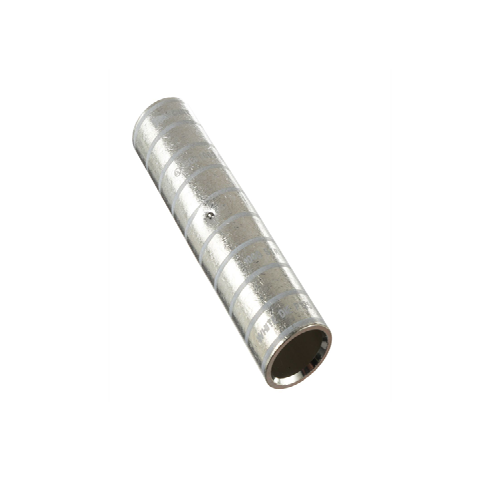

1 AWG Wire Compression Splice Pan-Lug Tin-Plated Copper SCL1000-3 (Pack Of 3)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
Wire Gauge Compatibility: This connector is specifically designed to accommodate 1/0 AWG wires, which are commonly used in industrial and high-power electrical systems where robust connections are essential. Compression Splice Mechanism: The connector utilizes a compression splice mechanism, ensuring a secure and reliable connection between wires. This method involves compressing the connector onto the wires, creating a strong bond that minimizes the risk of electrical failure or disconnection.
Specification :
| Product Type | Compression Splice |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (kcmil) | 1 |
| Barrel Type | Long |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL Listed for Power and Grounding Applications in the U.S. and Canada; Meets UL467 Requirements for Grounding |
| Finish/Coating | Tin-Plated |
| Color Code | White |
| Burndy Die Index Number | 27 |
| Panduit Die Index Number | P125 |
| T & B Die Index Number | 125 |
| Overall Length (In.) | 6.12 |
| Overall Length (mm) | 155.4 |
| Wire Strip Length (In.) | 3 |
| Wire Strip Length (mm) | 76.2 |
| UL Temperature Rating (°C) | 90 |
