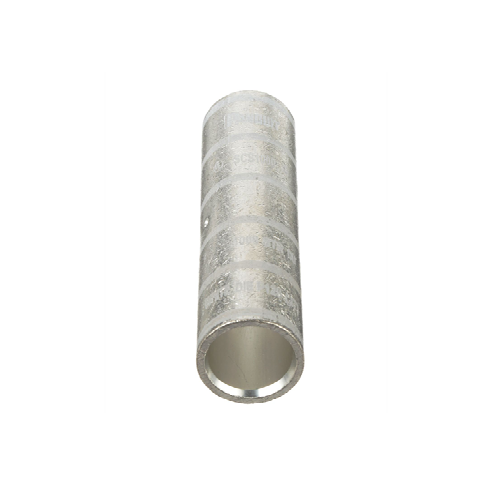

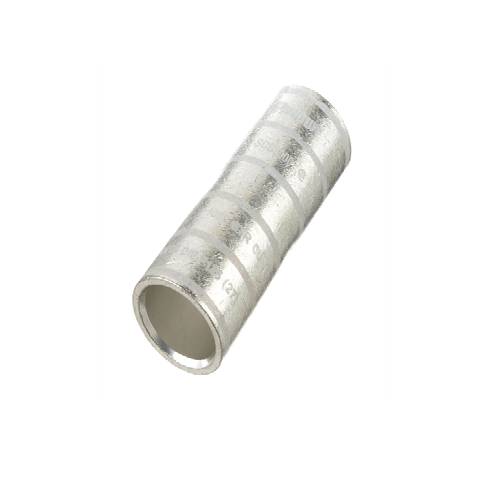

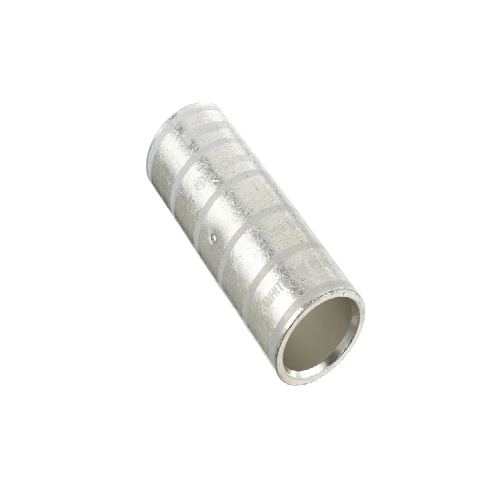

1 AWG Compression Connectors - Splices Tin-Plated Copper Standard SCS1000-3 (Pack Of 3)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
Compression connectors are typically used in electrical applications to create reliable connections between cables or wires. The SCS1000-3 compression connector you mentioned seems to be specifically designed for splicing tin-plated copper cables. These connectors are likely made from high-quality materials to ensure conductivity and durability, and they use compression technology to securely join the cables together.
Specification :
| Product Type | Compression Splice |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (kcmil) | 1 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL Listed CSA certified |
| Finish/Coating | Tin-Plated |
| Color Code | White |
| Burndy Die Index Number | 27 |
| Panduit Die Index Number | P125 |
| T & B Die Index Number | 125 |
| Overall Length (In.) | 3.87 |
| Overall Length (mm) | 98.3 |
| Wire Strip Length (In.) | 1 7/8 |
| Wire Strip Length (mm) | 47.6 |
| UL Temperature Rating (°C) | 90 |
