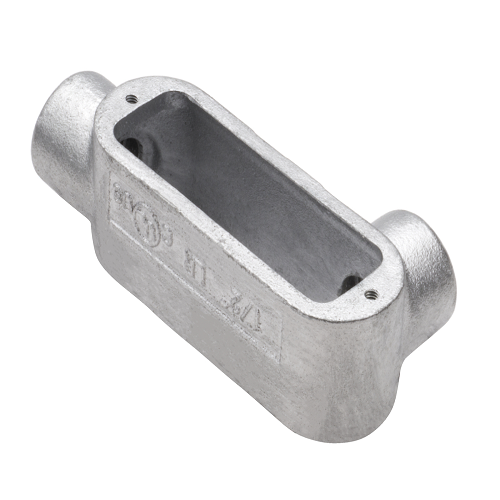

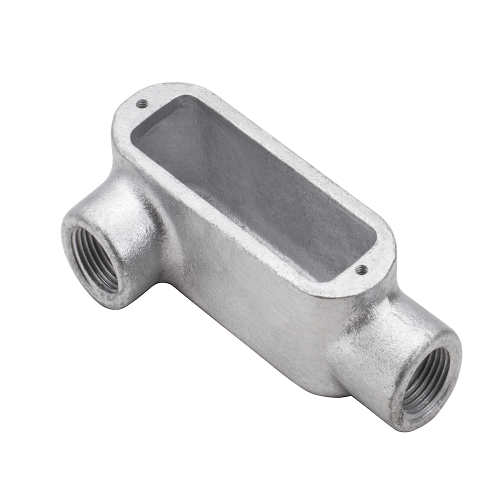

1/2" Rigid Conduit Bodies LL Type Malleable Iron LL1M (Pack of 30)

Product Information

Specification

About :

The "1/2" in the name indicates the size of the conduit fitting, which is 1/2 inch. This size is standard in many electrical installations. "Rigid" suggests that the fitting is designed for use with rigid metal conduits (RMC). The material is typically die-cast zinc or steel, known for its durability and strength. The "MAL LL" designation usually refers to the type of conduit body used. In this context, "LL" indicates the shape and the entry configuration of the conduit body. "LL" conduit bodies have two hubs arranged at a 90-degree angle, allowing for a change in direction of the conduit run. They are typically used in corner installations where a 90-degree bend is required.  These fittings often come with features like integral bushings for protection of wire insulation, and they are usually threaded for a secure connection to the conduit. They are expected to comply with industry standards such as those set by the National Electrical Manufacturers Association (NEMA) and the Underwriters Laboratories (UL).

Also known as:

1/2-inch Electrical Conduit Pipe, 1/2-inch Steel Conduit, 1/2-inch Metal Conduit, 1/2-inch Galvanized Rigid Conduit.

Specification:

Material : Malleable Iron
Height : 1.31 Inch
Width : 2.06 inch
UPC : 751338211407

Features:

• Threaded LL type
• NPT tapered hubs
• Suitable for use in concrete
• Hot dip galvanized finish provides superior protection against severe environmental factors
