1/2" Coaxial Plenum HFAC Low Loss High Flexible Air Dielectric Feeder Cable White HFAC-12DPV 1000 ft

Product Information

Specification

About:

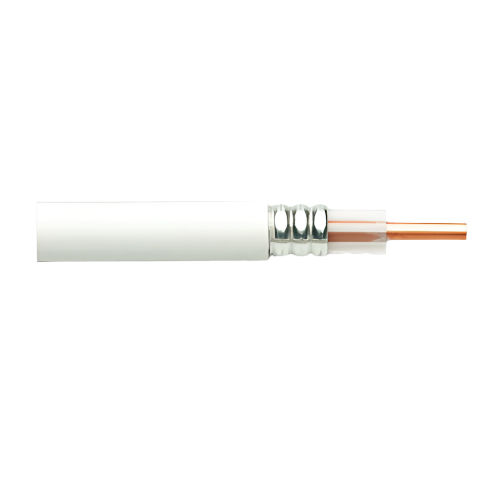

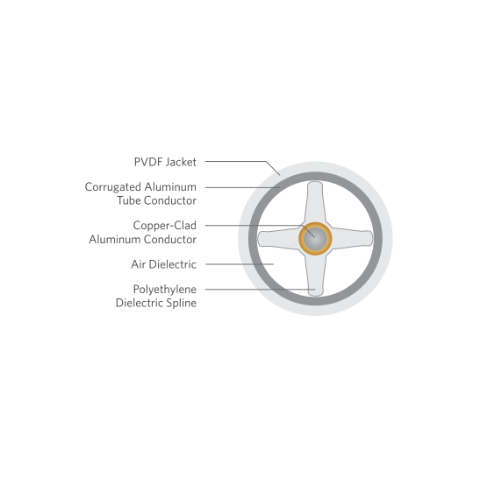

HFAC-12DP is a 1⁄2 inch, low loss 50 Ohm Plenum Rated RF coaxial cable that is installed in the plenum space of a building as part of an in-building DAS system to eliminate dead zones and spotty coverage. Designed with a copper clad aluminum center conductor, air dielectric center structure, helically corrugated aluminum tube outer conductor, and Plenum Rated outer jacket, the HFAC-12DP is a high performing cable with low loss attenuation.

Also Known as:

1/2" Size Cable, Coaxial Cable, Low Loss Cable, Plenum Low Loss Cable, HFAC Plenum Cable, Plenum Rated RF Cable.

Applications:

• In-building Wireless
• Distributed Antenna System (DAS)

Benefits:

• Highly efficient signal transfer
• Outperforms the industry requirements for low PIM
• Flame retardant and low smoke; blends with background for optimal building aesthetics
• Safe to use throughout a building including air carrying plenum space
• Shortens installation time and expenses

Features:

• Low attenuation
• Low passive intermodulation
• High-quality, white PVDF jacket
• ETL Certified CMP (UL 444)
• Full range of easy to install connectors and an automated cable prep tool

Specifications:
