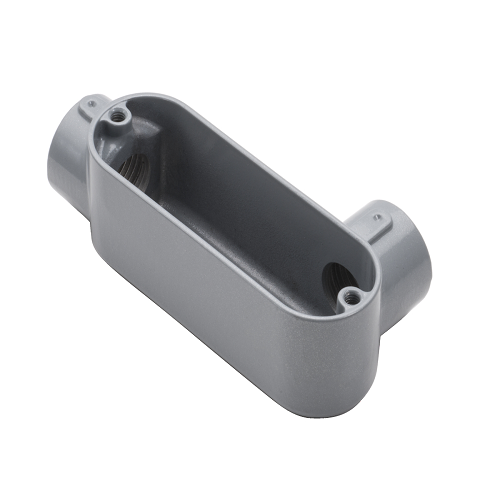

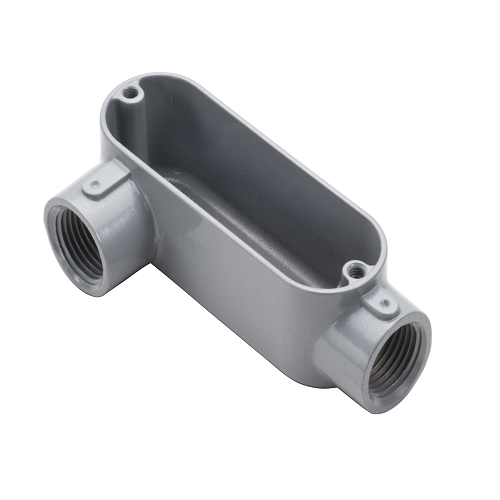

1-1/4 Rigid LR Conduit Bodies LR4 (Pack of 15)

Product Information

Specification

About :

The "1-1/4" in its name indicates the conduit size it's designed to fit, which is 1-1/4 inches in diameter. LR denotes the configuration of the conduit body. An LR type has two openings that are positioned on the left and right sides when facing the cover. It's typically used to change the direction of conduit runs in a 90-degree left or right turn. These conduit bodies are often made from rigid materials like aluminum, PVC, or galvanized steel. The choice of material can depend on the requirements for strength, corrosion resistance, and electrical grounding.  Most Rigid LR conduit bodies come with a cover and gasket. The cover provides easy access for wire pulling, splicing, and maintenance, while the gasket ensures a watertight seal to protect electrical connections from moisture and dust.

Also known as:

90-Degree Rigid Elbow, LR Type Conduit Body, Threaded Rigid Elbow, Large Radius Elbow, Pull Elbow with Cove.

Specification:

Material : Zinc Plated Gray Iron
Height : 3.335 Inch
Width : 3.81 inch
UPC : 751338212701

Features:

• Threaded LR type
• NPT tapered hubs
• Suitable for use in concrete
• Suitable for use in wet locations
