Specification

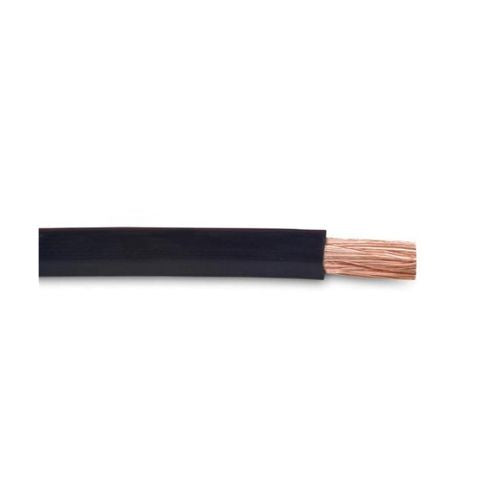

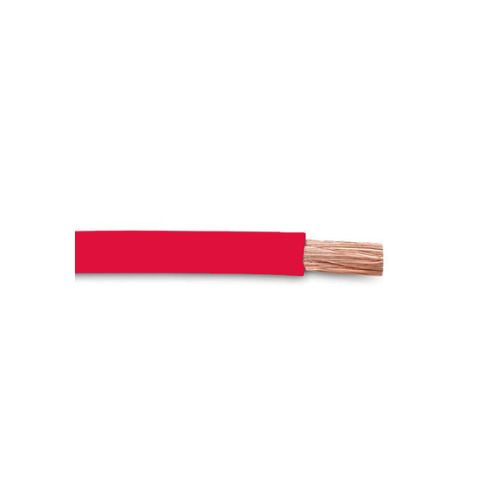

1/0 Gauge Type SGR EPDM (Rubber) Jacket Battery Cable

Applications:

The battery cable is an electrical wire that is used in harsh conditions, such as in the automotive, agriculture, and transportation. The operating temperature range of this battery wire is up to 150°C, and this electrical wire has a voltage rating of 60V.

Also Known As:

1/0 gauge battery cable, 1/0 awg car battery cable, 1/0 awg battery wire, 1/0 sgr cable, 1/0 awg sgr battery cable.

Standards:

• • SAE J1127
• • ISO
• • FORD
• • GM
• • FCA (Chysler)
• • Heavy-duty OEM specifications

Construction

Conductors:

This battery cable conductor is  made of fully annealed and soft drawn copper. Annealing is a process which involves heating and cooling of metals in a controlled temperature in order to improve their strength and conduction quality. It is softly drawn to make it more flexible and easier to work with.

Jacket:

This cable jacket is made of color-coded Ethylene Propylene (EPDM). EPDM insulations are tough but highly flexible coatings for conductors. They don’t conduct current so you can handle the wire as it transmits power without worries over your safety. Moreover, it protects the underlying conductor from corrosion caused by moisture and industrial chemicals. It can’t be penetrated by UV light, water, or oil and can absorb damaging impacts of physical impacts to keep the conductor safe. It’s easy to terminate, twist, and fold without suffering wears and tears.

Specifications:

• • Conductor Size (AWG): 1/0
• • Mon. Number of Strands: 1064
• • Individual Strand Size (AWG): 30
• • Insul. Thickness Min. (inches): 0.045
• • Insul. Thickness Nom. (inches): 0.065
• • Diameter Max. (mm): 0.600

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
