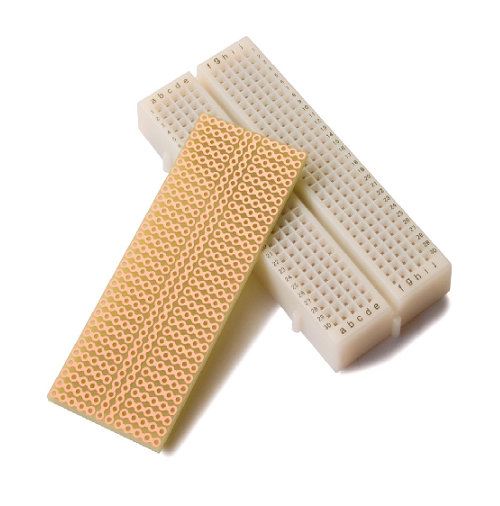

300 Tie-point Breadboard Solderless PCB Breadboards KIT-BB300+SB300

300 Tie-point Breadboard Solderless PCB Breadboards KIT-BB300+SB300

Description:

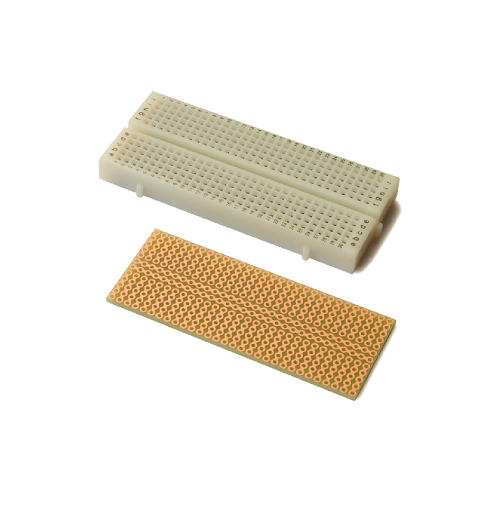

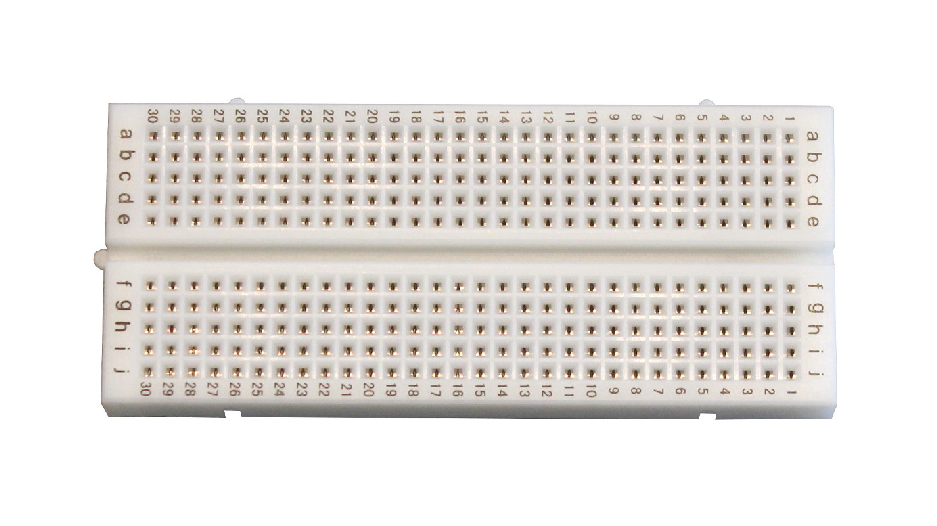

BreadBoard-300 is a solderless (plug-in) breadboard with 300 connection tie-points (i.e. 300 wire insertion holes). Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The BB300 has a 300 tie-point IC-circuit area. The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows. The internal contacts are phosphor bronze with a plated nickel finish. A peelable adhesive tape backing is provided for attaching it to a surface. BPS BreadBoards are Lead-Free and RoHS Compliant. Finished projects can be moved to the SB300 Solderable PC BreadBoard to make them permanent.The SB300 Solderable PC BreadBoard enables you to transfer your circuit and wires from a plug-in breadboard without recutting wires or changing your layout. The SB300 has the same pattern and spacing as a standard 300 connection point solderless plug-in breadboard. It has a standard 5-hole strip for each IC pin, just like solderless breadboards. However, it has the advantage that soldered joints provide a more reliable long-term connection than solderless contacts. The SB300 has two power rails along the centerline. BPS prototyping boards use high-quality FR4 glass epoxy PCBs for long life, with an anti-tarnish protective coating for easy soldering. BPS boards are lead-free and RoHS compatible.

Features:

• 300 tie-point IC-circuit area.
• White ABS plastic body with black printed legend.
• Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.
• Rated at 36 Volts, 2 Amps.
• Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
• Peelable adhesive tape backing provided for attaching to a surface.
• Size: 3.3 x 1.4 x 0.3in (84 x 35.5 x 8.5mm).
• Same pattern and spacing as a standard 300 connection point solderless plug-in breadboard.
• Single-sided high-quality FR4 glass-epoxy circuit board.
• 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
• 360 holes, 0.042" holes are drilled on 0.1" (2.54mm) centers.
• 1.20" tall, 3.00" long, 1/16" thick (31 x 76 x 1.6mm)
