Product Information

Specification

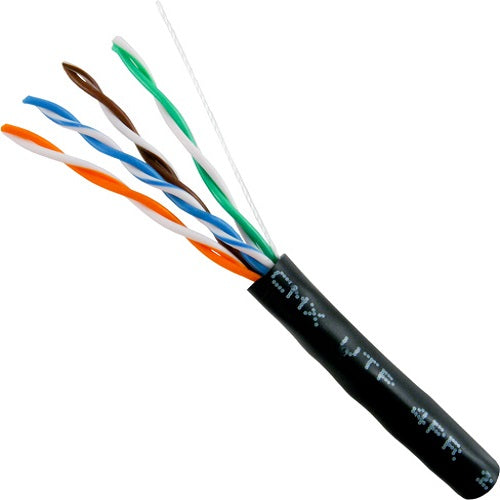

24AWG CAT5E CMX 8 Conductor Solid-Bare Copper LLDPE Jacket Black 2000ft Wooden Spool 059-491/CMX2K

DESCRIPTION :

Category-5E CMX, 8-Conductor, Outdoor Jacket (UV), AWG24 Solid-Bare Copper.

FEATURES :

⦿ High-Performance Data Cable

⦿ 350MHz Bandwidth for Data Applications

⦿ 24AWG Solid Copper Conductors

⦿ Easily Identified Color-Striped Pairs

⦿ Exceeds TIA/EIA-568C.2, ISO/IEC 11801

⦿ CAN/CSA -C22.2 No. 214

⦿ Suitable for 10/100/1000Base-T

⦿ Outdoor UV Rated Jacket

⦿ ETL Listed, RoHS Compliant

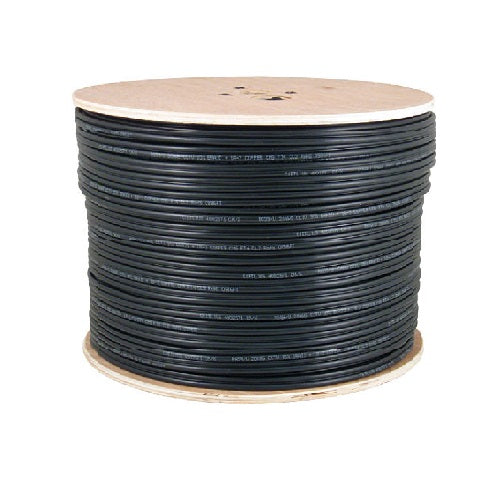

⦿ Available in 1000ft Pull Box or Wooden Spool, or 2000ft Wooden Spool

Technical Data :

⦿ Rated Temperature -40 ~ 75 ºC

⦿ Rated Voltage 60V

⦿ Product Standard Certification CMX

⦿ Reference Standard TIA/EIA 568 & ISO/IEC 11801

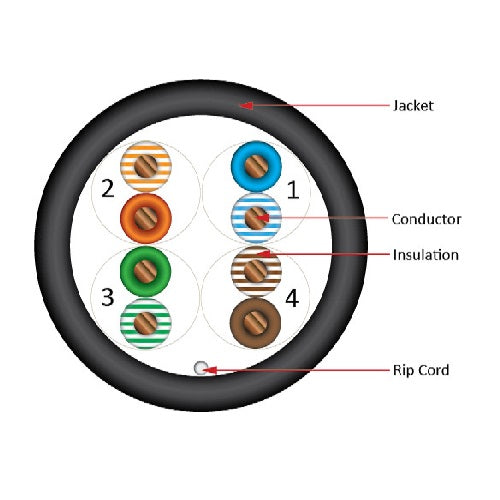

Conductor Solid Bare Copper :

⦿ Size 24 AWG

Insulation PE :

⦿ Average Thickness (mm) 0.205

⦿ Min. Point Thickness (mm) 0.190

⦿ Insulation Diameter (±0.005mm) 0.91

⦿ Twisted Pair Diameter (±0.01) 1.82

Assembly Diameter 3.80 :

(Jacket (Black) LLDPE (UV))

⦿ Average Thickness (mm) 0.60

⦿ Min. Point Thickness (mm) 0.54

⦿ Outer Diameter (±0.10mm) 5.10

⦿ Rip Cord Yes

Color of Pairs :

⦿ Pair 1:Blue,White-Blue

⦿ Pair 2:Orange,White-Orange

⦿ Pair 3:Green,White-Green

⦿ Pair 4:Brown,White-Brown

Mechanical Characteristics :

⦿ Test Object Jacket

⦿ Test Material LLDPE

⦿ Before Tensile Strength (Mpa) ≥13.8

⦿ Aging Elongation (%) ≥100

⦿ Aging Condition (ºCxhrs) 100x168

⦿ After Tensile Strength (Mpa) ≥85% of unaged

⦿ Aging Elongation (%) ≥50% of unaged

⦿ Cold Bend (-40±2º Cx4hrs) No Crack

Marking on Jacket :

⦿ VERTICAL 4001453 cETLus VERIFIED CMX UTP 4PR 24AWG OUTDOOR UV
CAT5E 350MHz TIA/EIA - 568C.2 RoHS XXXFT
(SEQUENTIAL FOOT MARKERS ON JACKET)
