Application:
Type THHN or THWN-2* conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code2.
When used as Type THHN, conductor is suitable for use in dry locations at temperatures not to exceed 90°C.
When used as Type THWN-2*, conductor is suitable for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil or coolant.
When used as Type MTW, conductor is suitable for use in wet locations or when exposed to oil or coolant at temperatures not to exceed 60°C or dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79).
Conductor temperatures not to exceed 105°C in dry locations when rated AWM and used as appliance wiring material. Voltage for all applications is 600 volts.
Standards: THHN or THWN-2* or MTW (also AWM) meets or exceeds all applicable ASTM specifications
UL Standard 83
UL Standard 1063 (MTW)
Federal Specification
A-A-59544, and requirements of the National Electrical Code.
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
I needed 2 short pieces of wire to complete a project at home- replacing an outlet with a USB one. I looked everywhere for a small amount of white and black 12 gadgets wire. When I found UT here I was ecstatic. Shipping was way more than my purchase, but, I GOT IT THE NEXT DAY!! I thought my project would be on hold for a few weeks. Instead, I was so pleasantly surprised when my wire arrived the very next morning.
Great selection, service, and speed! Bravo.
pdf
Get in Touch
Live Chat
Get replies right away!
Email
info@nassaunationalcable.com
Call Us: 1-516-482-6313 Text Us: 1-516-703-3460
Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device

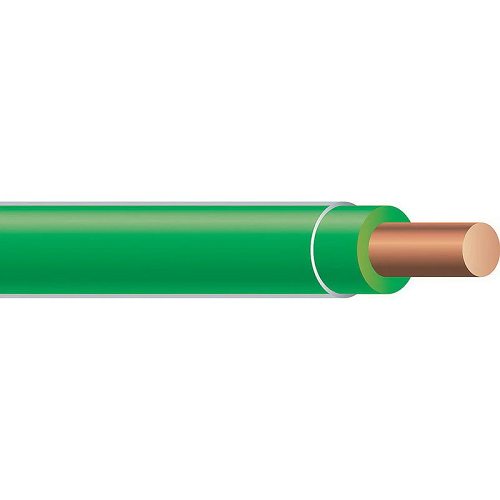

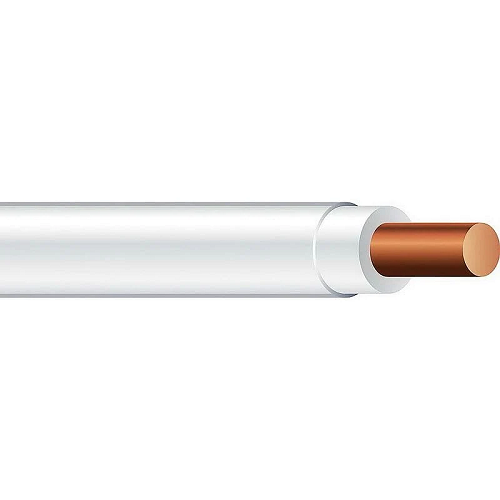

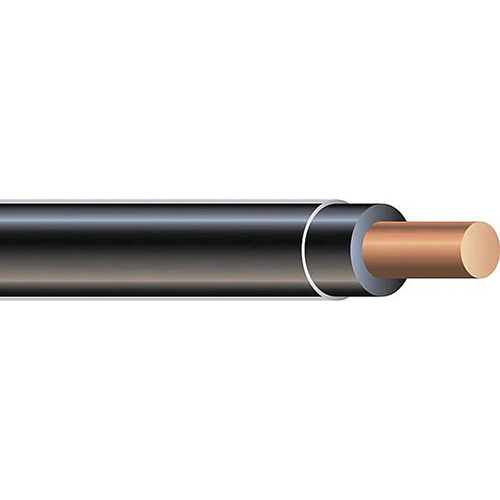

12 Solid THHN-THWN Copper Wire | Nassau Cable
