Product Information

Specification

Also Known As :-

Piccolo Series, Polycarbonate Enclosure, Mounting Plate, Enclosures UL PC F 65 T, Transparent cover

About:

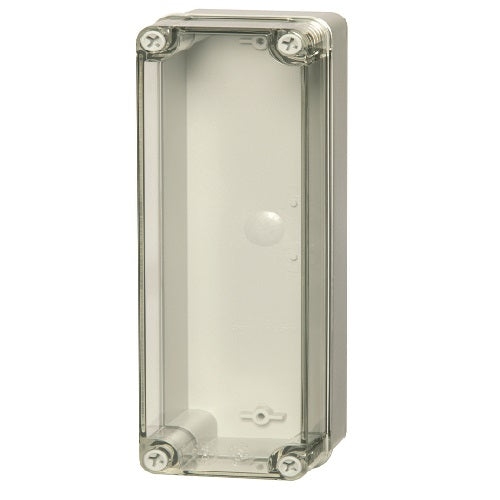

The Fibox UL PC F 65 T is a polycarbonate enclosure that can house electrical controls, instruments, and components. It's designed for areas that don't require oil, water, and dust tight protection.

 Common Applications :-

• Control

• Measurements,

• Terminal enclosures

Electronics Enclosures: Transparent covers are often used in electronics enclosures to protect delicate components while allowing visual inspection and access to controls or displays.

Control Panels: Transparent covers can be installed on control panels used in manufacturing, process control, or building automation.

Electrical Cabinets: In electrical distribution or switchgear cabinets, these covers help safeguard circuit breakers, relays, and other electrical components from accidental contact

Outdoor Enclosures: In outdoor applications, Transparent covers can protect outdoor electrical or telecommunication enclosures from rain, UV exposure, and vandalism.

Standards :-

• Ingress Protection (EN 60529): IP66IP67

• Impact Resistance (EN 62262): IK08

• Electrical insulation : Totally insulated

• Halogen free (DIN/VDE 0472, Part 815) : Yes

• UV resistance : UL 746C

• Flammability Rating : UL 94 V0

• Glow Wire Test (IEC 60695): 960C

• NEMA Class : Type 1, 4X, 6, 12 or 13

Specifications :-

 Transparent cover Polycarbonate Pushbutton PC Enclosure 9.1”x3.1”x2.6 UL PC F 65 T

DESCRIPTION :

An Transparent cover polycarbonate pushbutton PC enclosure is a protective housing designed to encase and safeguard electrical or electronic components, particularly pushbutton switches and related equipment. Here's a more detailed description of such an enclosure.

Features :-

• Product Type: Enclosure

• Product Series: PICCOLO

• Dimensions (inches): 9.06 x 3.15 x 2.56

• Dimensions (mm): 230 x 80 x 65

• Material: Polycarbonate

• Color: Gray

• Additional Features: Screw Cover, Transparent Cover

• Agency Approvals: NEMA 1, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, UL 508, IP67, IK08

Dimensions :

Height (mm) : 230

Width (mm) : 80

Depth (mm) : 65

Height (inch) : 9.06

Width (inch) : 3.15

Depth (inch) : 2.56
