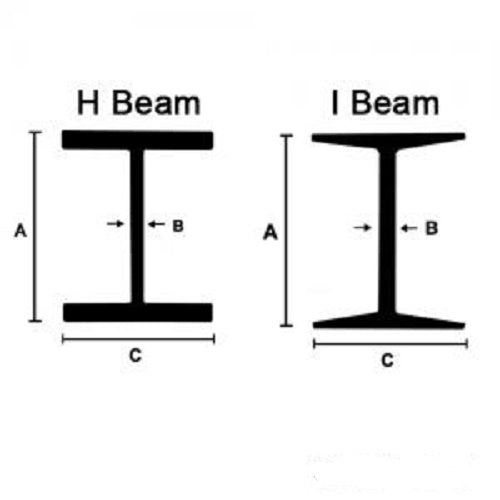

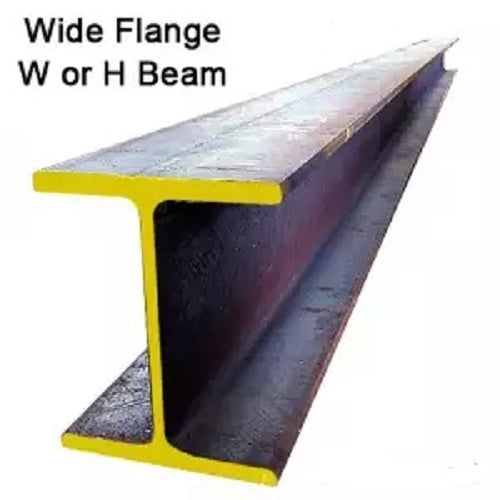

Steel Beamsare widely used throughout the construction industry when supporting heavy loads is required. Commonly termed an “I” Beam because of its shape, beams provide great load bearing support when used horizontally or standing as columns. Available in two configurations, the most popular being the Wide Flange Steel Beamaka H Beam or W Beam with non-tapered flanges.
ASTM A992/A572-50 (Grade 50)
Tensile Strength
65,000 psi
Yield Point
50,000 - 65,000 psi
Elongation
21% in 2"
Finish
slightly shiny silver color, grainy and spackled surface
Shearing Strength
11,200 psi
Brinell Hardness
135
