Hardline Cable Jacket Stripping Tools JCS-500QR
Also Known As:
Hardline Cable Jacket Stripping Tools JCS-500QR, JCS tools strip the jacket, braid-replacement drop cables.

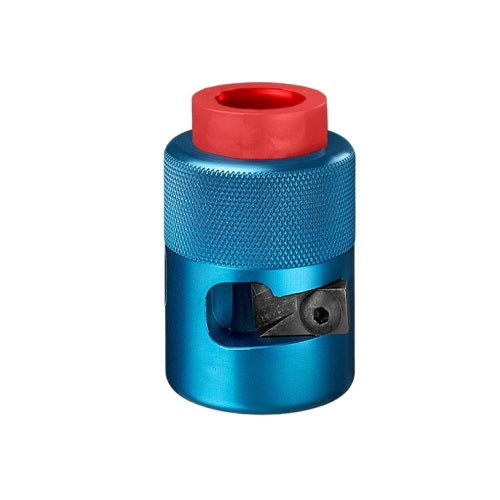

CS Hardline Cable Jacket Stripping Tool: A cable jacket stripping tool with a guide sleeve color of light blue. Durable and ergonomically designed, JCS cable jacket strippers cleanly remove the jackets on hard-line trunk and distribution cables.
JCS tools strip the jacket on PIII, T10, TX10, MC2, and PB10 cables; 0.540″, 0.715″, and 0.860″ CommScope double-jacketed cables; CommScope 7mm, F320, and 0.500″ through 1.125″ QR hard-line cables; and Andrews CSA6 and CSA11 braid-replacement drop cables.
Product Type : Cable Jacket Stripping Tools
Part No : JCS-500QR
Dual-edged Steel Blades:
The JCS blade bites into and lifts the cable jacket with ease, cleanly removing the jacket without damaging the soft outer conductor. Made of heat-treated tool steel, the blade is easy to replace after a long life of sharpness.
Knurled Tool Body:
The JCS tool body is anodized and sealed to protect it from the elements. On non-QR tools, the body’s knurled gripping surface ensures a firm hold during the stripping operation.
Color-coded Guide Sleeves:
A plastic guide sleeve on non-QR tools keeps all metal surfaces away from the soft aluminum outer conductor. The guide sleeve is color-coded to match the corresponding Cable Prep brand SCT stripping/coring tool, thereby facilitating selection of the right tool for the application.
Patented Mandrel Pin:
A patented mandrel pin on QR tools protects the soft outer conductor during the jacket stripping operation.
Download PDF Spec Sheet
