22-26 AWG Mini-Com Cat6A Shuttered Jack Module RJ45 TG Style CJH6X88TGWH
Also Known As:

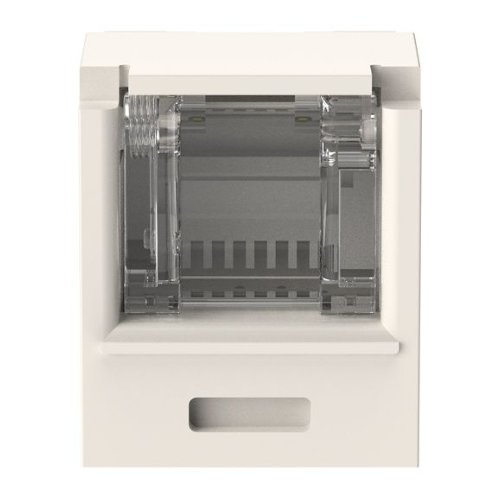

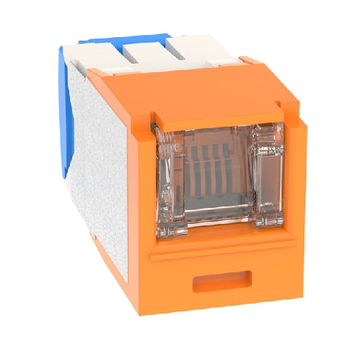

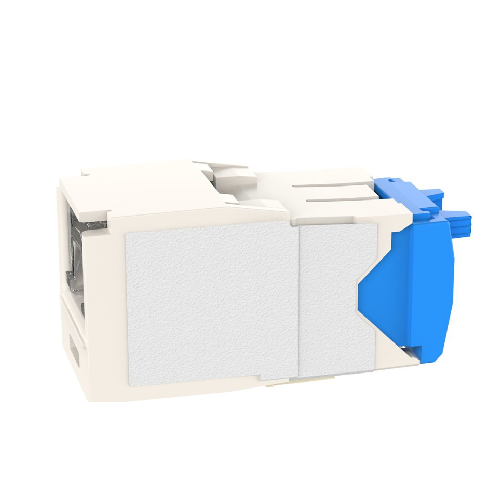

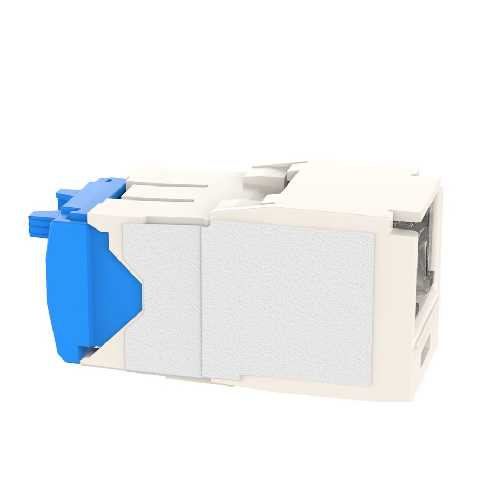

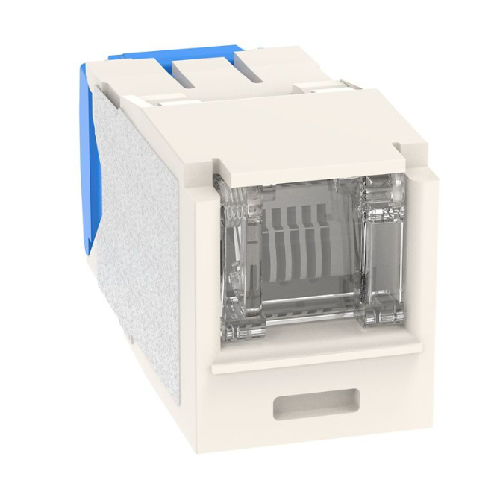

The Mini-Com® Cat 6A UTP RJ45 Spring-Shuttered TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. The integrated spring-shuttered door keeps dust and debris out of unmated RJ45 jack modules. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is arctic white.
The CJH6X88TGWH is a high-performance, toolless, and shuttered RJ45 jack module designed for easy and quick installations in high-speed network environments. It is compatible with 22-26 AWG wires, offering versatility in various installation environments.
|Product Type||Jack Module|
|Performance Level||Category 6A|
|Connector Type||Jack Module - Standard|
|Termination Style||TG Style|
|Contact Material||Plated Phosphor Bronze|
|Shield Type||Unshielded (UTP)|
|Maximum Operating Temperature (°C)||75|
|Maximum Operating Temperature (°F)||167|
|Minimum Operating Temperature (°C)||-10|
|Minimum Operating Temperature (°F)||14|
|Maximum Storage Temperature (°C)||75|
|Maximum Storage Temperature (°F)||167|
|Minimum Storage Temperature (°C)||-40|
|Minimum Storage Temperature (°F)||-40|
|Overall Depth (In.)||1.5|
|Overall Depth (mm)||38.1|
|Overall Height (In.)||0.71|
|Overall Height (mm)||18|
|Overall Length (In.)||1.5|
|Overall Length (mm)||38.1|
|Overall Width (In.)||0.63|
|Overall Width (mm)||16|
• Enterprise Networks: Ideal for businesses and organizations that require high-speed, reliable, and secure data transmission.
• Data Centers: Helps in achieving optimal performance in environments where data transmission speed and reliability are crucial.
• Smart Homes: Can be used in advanced home networking setups requiring high-speed internet.
• Toolless Installation: Allows for easy setup without the need for specialized tools, saving time and effort.
• Compatibility: Supports 22-26 AWG wires, offering flexibility in installation.
• Enhanced Performance: Designed to support Cat6A performance, suitable for high-speed data transmission.
• Shuttered Design: Protects the connectors from dust, debris, and damages, ensuring long-lasting performance.
• ANSI/TIA-568-C.2: Standards for balanced twisted-pair cabling and components.
• ISO/IEC 11801: International standards for generic cabling for customer premises.
• Material: Typically constructed from high-quality, durable materials to withstand various environmental conditions.
• Connector: Features gold-plated contacts to ensure optimal conductivity and performance.
• Design: The shuttered design ensures the jack is protected from external elements that can compromise its performance.
