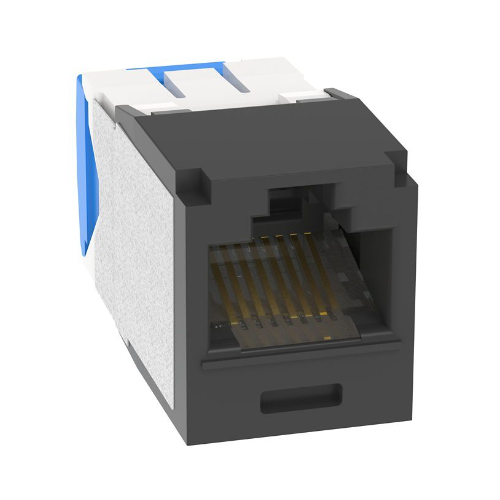

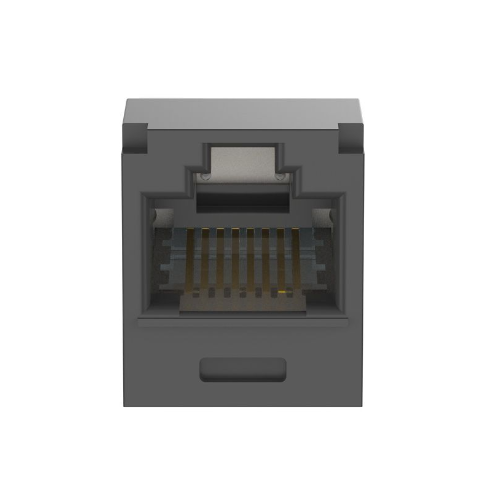

22-26 AWG Mini-Com Cat6A RJ45 10Gig Corrosive Resistant UTP Jack Module CJE6X88TGBL
Also Known As:
The Mini-Com Cat 6A UTP RJ45 Corrosion Resistant TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. A polymer based gel protects electrical contacts and internal components by reducing the ingress of moisture and other corrosive elements such as salt, providing improved long term performance.
The CJE6X88TGBL is a Cat6A RJ45 jack module designed to support 10 Gigabit Ethernet applications, offering enhanced data transmission speed and reliability. It is corrosive-resistant and compatible with 22-26 AWG wires, making it suitable for various environments.
|Product Type||Jack Module|
|Performance Level||Category 6|
|Connector Type||Jack Module - Corrosion Resistant|
|Termination Style||TG Style|
|Contact Material||Plated Phosphor Bronze|
|Shield Type||Unshielded (UTP)|
|Maximum Operating Temperature (°C)||75|
|Maximum Operating Temperature (°F)||167|
|Minimum Operating Temperature (°C)||-10|
|Minimum Operating Temperature (°F)||14|
|Maximum Storage Temperature (°C)||75|
|Maximum Storage Temperature (°F)||167|
|Minimum Storage Temperature (°C)||-40|
|Minimum Storage Temperature (°F)||-40|
|Overall Depth (In.)||1.5|
|Overall Depth (mm)||38.1|
|Overall Height (In.)||0.72|
|Overall Height (mm)||18.3|
|Overall Length (In.)||1.5|
|Overall Length (mm)||38.1|
|Overall Width (In.)||16.3|
|Overall Width (mm)||16.3|
• Industrial Settings: Given its corrosive-resistant feature, it's suitable for environments exposed to chemicals or corrosive elements.
• Data Centers: Supports high-speed data transmission, making it a fit for data centers.
• Office Networks: Can also be used in offices for fast and reliable network connectivity.
• Supports 10G Ethernet
• Compatible with 22-26 AWG wires
• Easy to install
Depends on the specific model and manufacturer, but typically:
• TIA/EIA standards for Cat6A performance
• ISO/IEC standards for data transmission and cabling
• RoHS compliance if it’s free from specific hazardous materials
• Made with high-quality materials for durability
• Designed for easy installation and optimal performance
• Supports a range of wiring, offering adaptability
Download PDF Spec Sheet
