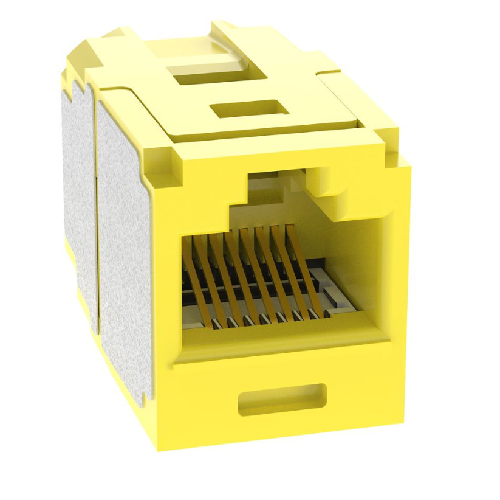

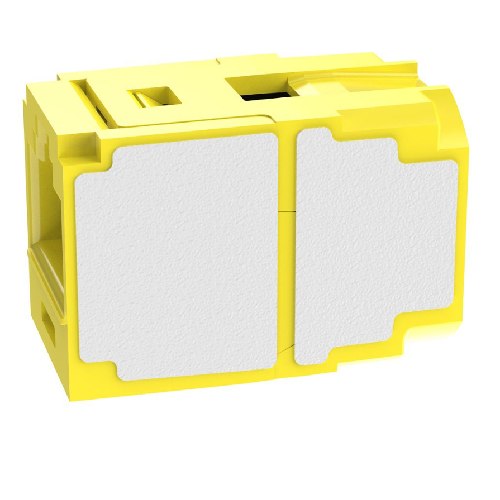

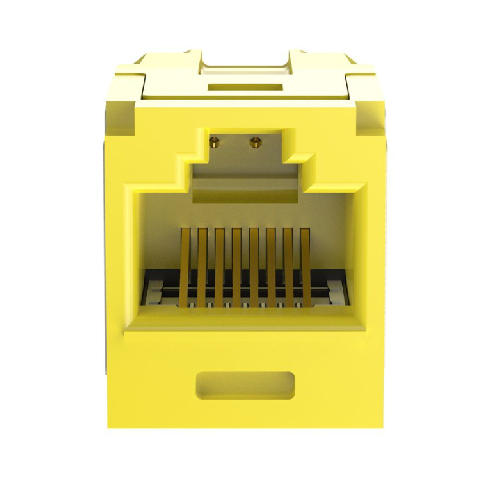

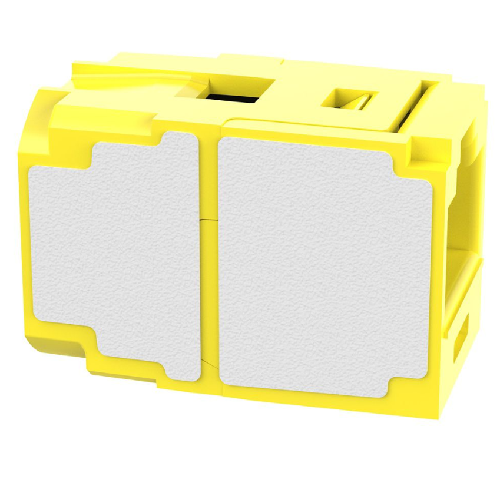

1 Port Mini-Com Cat6A 10Gig UTP RJ45 Coupler Module Polycarbonate CC6X88YL
Where are we? 4 Continents 8 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Chat
Live Chat: Bottom Right Corner!
Email Us
info@nassaunationalcable.com
Quick Support
Product Information
Specification
| Product Type | Coupler Module |
| Performance Level | Category 6A |
| Connector Type | Coupler Module |
| Termination Style | Coupler |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com® |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net® |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | Yellow |
| Standards Met | Exceeds Channel Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category with one coupler per channel, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Depth (In.) | 1.09 |
| Overall Depth (mm) | 27.7 |
| Overall Height (In.) | 0.71 |
| Overall Height (mm) | 18 |
| Overall Length (In.) | 1.09 |
| Overall Length (mm) | 27.7 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
| Part No: |
CC6X88YL |
Description:
Category 5e/Class D, 8-position, female-to-female, UTP coupler module shall provide easy plug-and-play pass through connectivity. Coupler modules shall act as one connecting hardware component in the channel. Coupler modules shall be available individually or installed in a 24-port flat patch panel. Couplers shall be compatible with 6 or 8-position RJ45 UTP patch cords with T568A and T568B wiring schemes.
Key Features and Benefits:
•100% performance :tested Confidence that each coupler will deliver the critical electrical performance requirements
• Modular: Couplers snap in and out of all Mini-Com Faceplates, Modular Patch
Panels and Industrial Bulkheads for easy moves, adds and changes
• RJ45 interface :Industry :standard interface provides a quick and easy plug and play
connection to RJ45 patch cords
• Identification :Can be clearly identified with optional labels and icons for
port identification
• Populated patchpanel version:Factory installed 24-port patch panel mounts to standard EIA 19" or 23"racks for greater system flexibility
• Blockout device (optional) :Provides a simple and secure method to control access to data port while not in use
Download PDF Spec Sheet
