Product Information
Specification

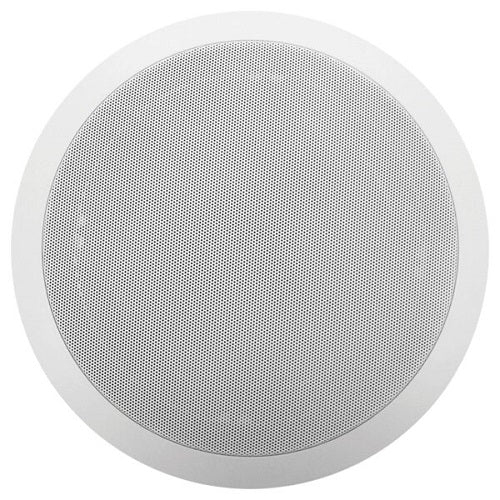

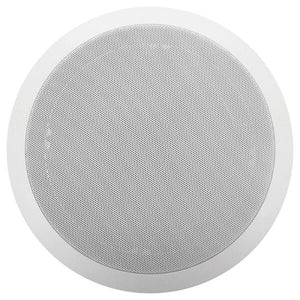

Viking 40-IP VoIP Ceiling Speaker for SIP Endpoint Paging or Multicast Paging
About :
The Viking model 40-IP Ceiling/Wall Speaker supports SIP endpoint paging and multicast for standard paging and background music. It connects via a single CAT5/6 cable to a PoE switch and can be mounted in a standard 2" x 4" wall or ceiling. It includes line-level audio output for external amplifiers and a built-in 6-watt class D amplifier for driving additional 8 Ohm speakers. The LED can be programmed to light during paging.
Also Known As :
Speakers, Ceiling Speakers, VoIP Speakers, IP Ceiling Speaker, Digital Ceiling Speaker, Ethernet Ceiling Speaker
Specification :
|
Paging Unit Type |
Speakers |
| Power | PoE class 3 (<13 Watts) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Humidity | 5% to 95% non-condensing |
| Network Compliance | IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over |
| Audio Codecs | G711u, G722, and G711a (SIP only) |
| Maximum Output Level | 105 dB SPL @ 1M (with no additional speakers connected) |
| Amplifier | 6 Watt class D (capable of driving up to five additional 8 Ohm speakers connected in parallel) |
| Connections | (1) RJ45 10/100 Base-T, (4) cage clamp screw terminals on pluggable connector |
Core Features :
• PoE powered (class 3, <13 Watts)
• Paging prioritization
• Plays audio from multicast
• SIP endpoint or multicast group member
• Supports up to 10 multicast paging groups
• Blue paging status LED indicator
• SIP compliant (see Product Manual for compatible IP-PBX phone systems)
• Auto-provisioning via Viking programming software
• Built-in high efficiency 6 watt class D amplifier
• SIP / Multicast: SIP page, SIP page and zoned multicast stream, zoned multicast receive.
• Support for access code to prevent unwanted SIP calls
• Line-level audio output for connecting to an external amplifier
• Network remote speaker volume control
• Can drive additional external analog speakers for greater coverage
• Mounting: Blind mounts into 9.5″ hole, clearance requirement of 3.45″ (87.3mm) above 1/2″ gypsum board ceiling
• Heavy duty back box protects speaker and circuitry from plenum dust
Download PDF Spec Sheet
