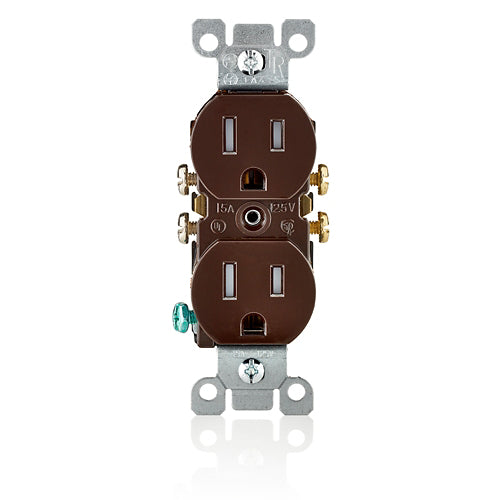

T5320 15 Amp Tamper-Resistant Duplex Outlet/Receptacle, Grounding, Brown

Product Information

Specification

Description:

15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Grounding, Quickwire Push-In & Side, Standards and Certifications: UL/CSA, Warranty: 2 Year Limited, NEC compliant – Brown

Features and Benefits:

• SAFE – Tamper-resistant offers protection from electrical shocks
• DURABLE – Impact-resistant thermoplastic nylon construction
• EASY – Quickwire push-in and side wiring for easy installation
• CONVENIENT – TR symbol on strap assures they meet the latest NEC requirements
• Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
• Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
• Shallow depth for maximum wiring room
• Heavy-gauge zinc-plated steel mounting strap
• Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
• Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
• Ultrasonic welding, heavy-duty construction offers long, trouble-free service life
• Limited 2-year warranty

Specifications:
