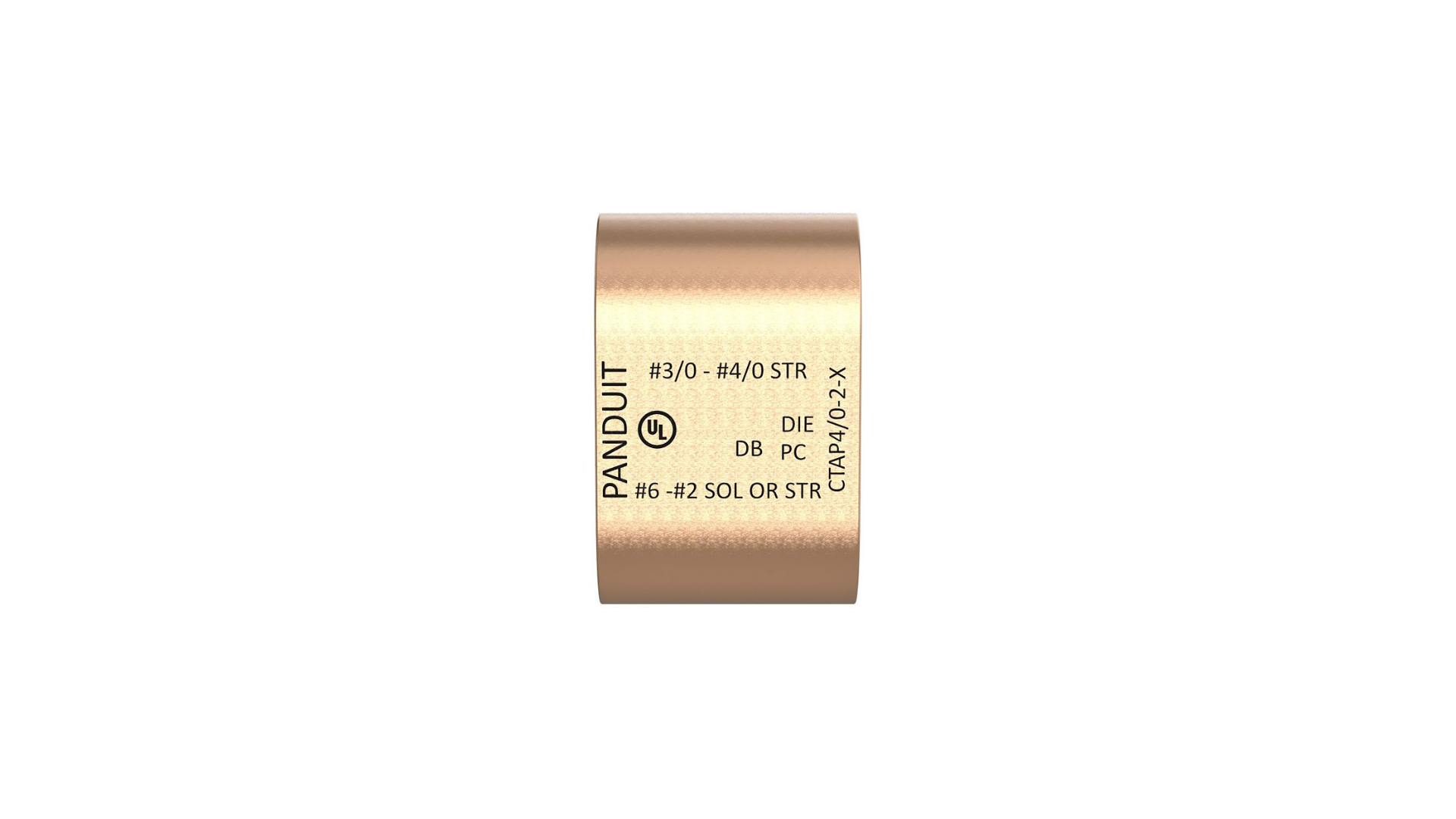

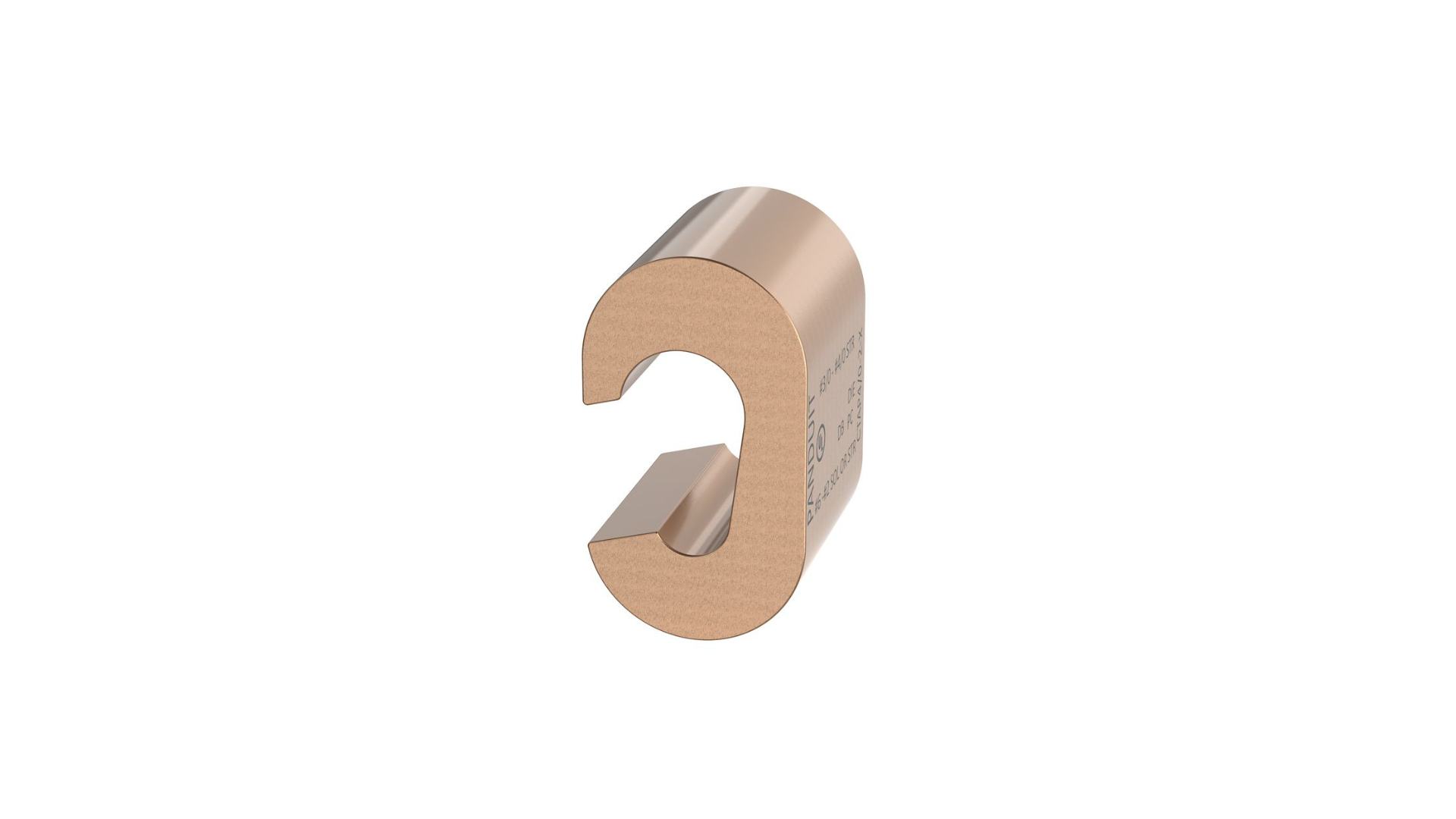

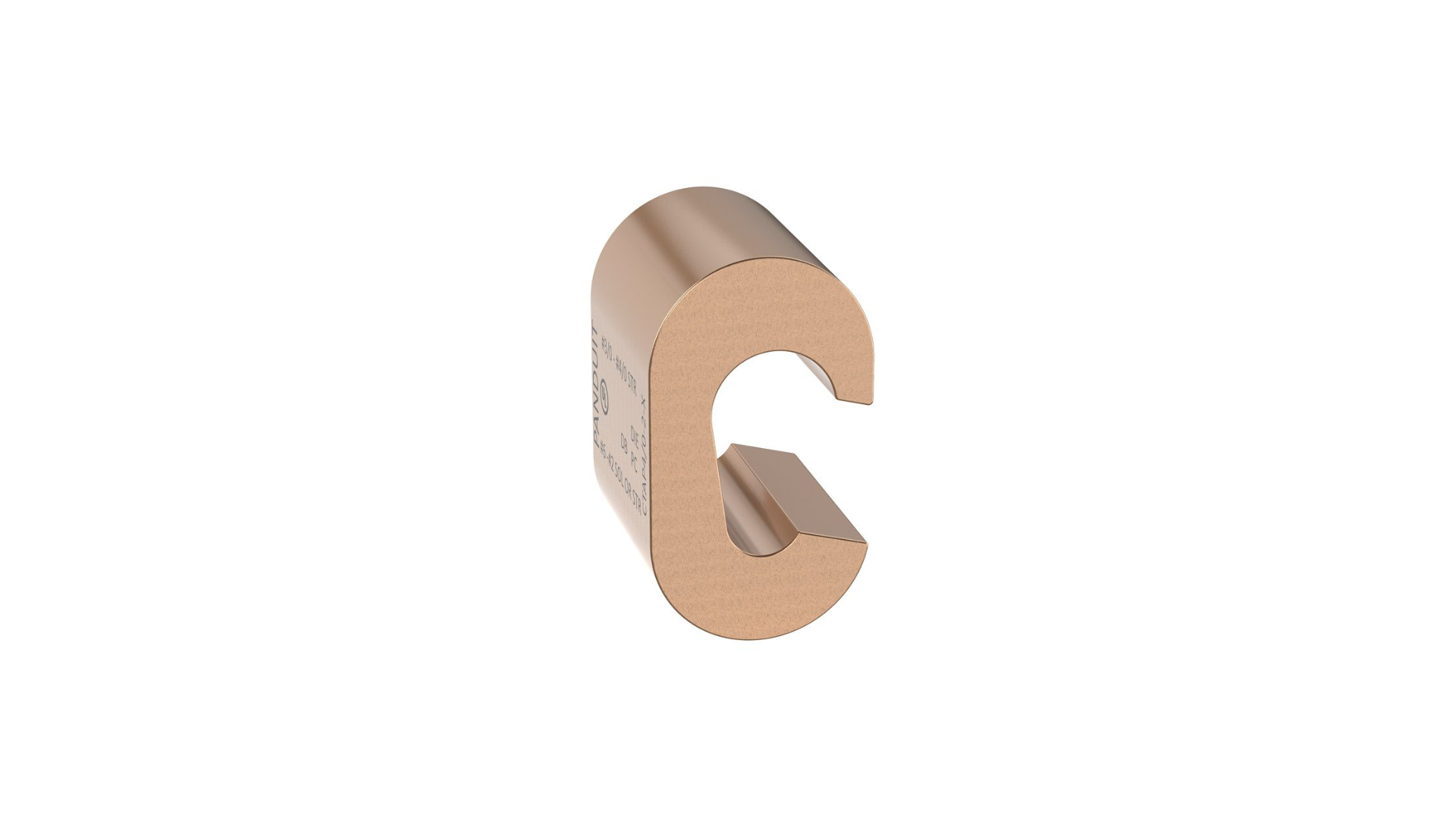

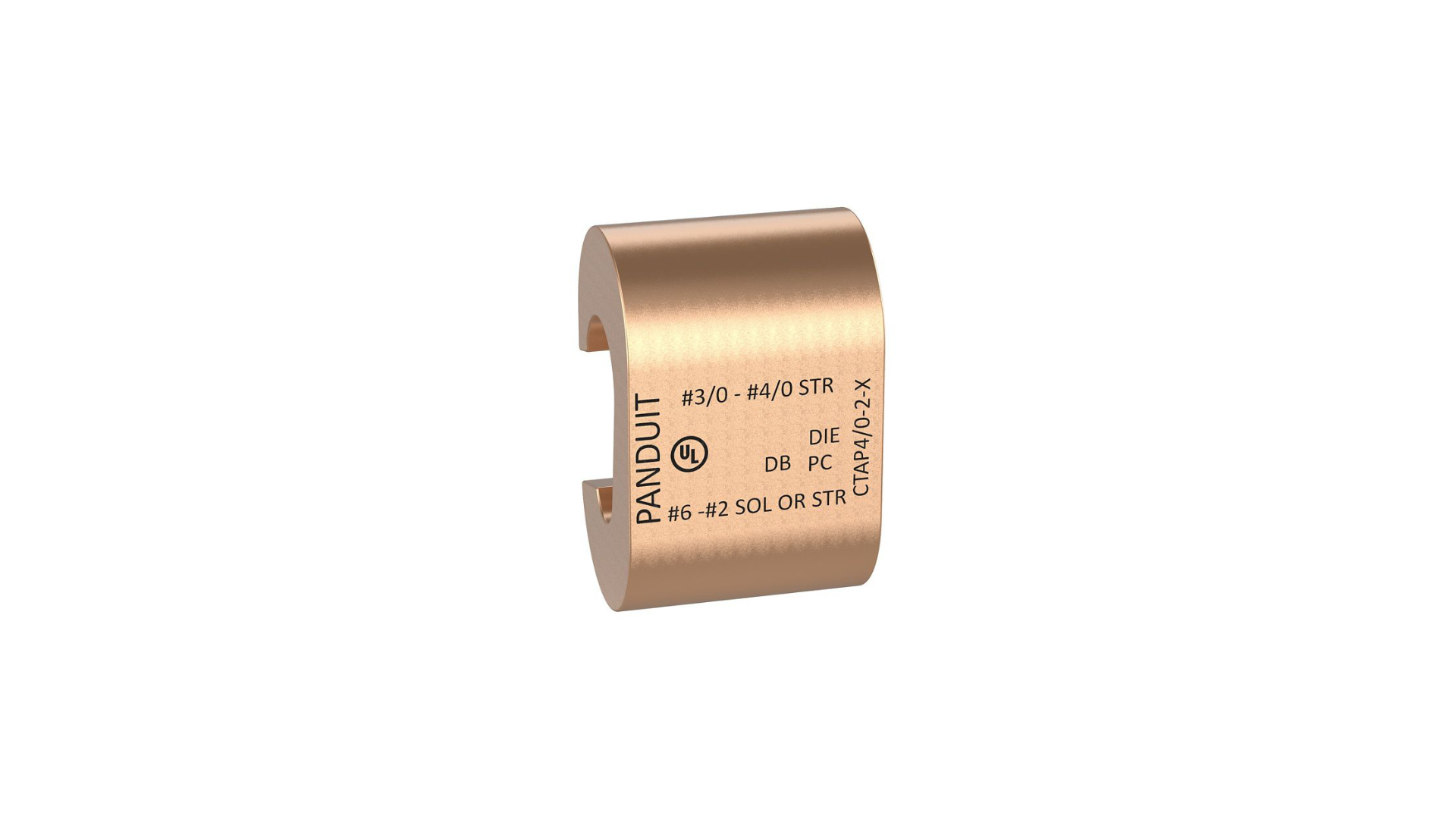

StructuredGround™ Comp. Tap, 4/0-2 PANDUIT (Pack of 10)CTAP4/0-2-X
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Sub Brand | StructuredGround™ |
| Maximum Tap Size (AWG SOL) | 2 |
| Maximum Tap Size (AWG STR) | 2 |
| Minimum Tap Size (AWG SOL) | 6 |
| Minimum Tap Size (AWG STR) | 6 |
| Maximum Run Size (AWG SOL) | No content |
| Maximum Run Size (AWG STR) | 3/0 |
| Minimum Run Size (AWG STR) | 4 |
| Length (In.) | 0.94 |
| Thickness (In.) | 1.08 |
| Width (In.) | 1.08 |
| Height (In.) | 1.66 |
| Panduit Die Index Number | PD3 |
| Burndy Die Index Number | F |
| Wire Strip Length (In.) | 1 1/4 |
| Wire Strip Length (mm) | 32 |
| For Use With | AWG wire only |
| Standards Met | UL 486 and UL 467 |
| Application | Utility/Ground Grid |
| Product Type | Compression Connectors - Taps |
| Material | High Conductivity Copper |
StructuredGround™ Comp. Tap, 4/0-2 PANDUIT CTAP4/0-2-X
Description:
The CTAP4/0-2-X Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per ul 486 for use up to 35 kv and temperature rated 90°c when crimped with Panduit and specified competitor crimping tools and dies.
