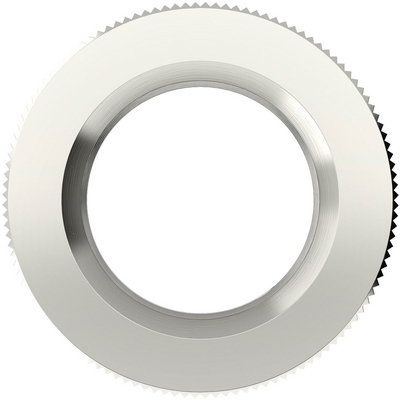

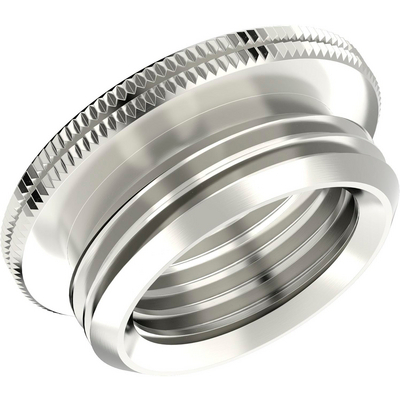

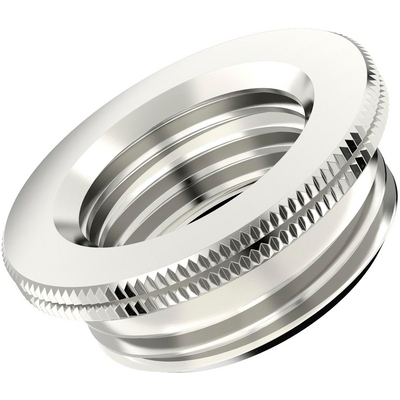

SKINDICHT® MR-M, REDUCER, ENABLES THE USE OF CABLE GLAND WITH SMALLER CONNECTION THREADS THAN THE EXISTING THREADED HOLES - 52104312
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Material | Nickel-plated brass |
| Temperature range | -60°C to +200°C |
| Classification ETIM 5 | ETIM 5.0 Class-ID: EC000441 ETIM 5.0 Class-Description: Cable screw gland |
| Classification ETIM 6: | ETIM 6.0 Class-ID: EC000441 ETIM 6.0 Class-Description: Cable screw gland |
| On request | Also available with pre-installed O-ring |
| Thread, male M1 | 20 x 1.5 |
| Thread, female M2 | 16 x 1.5 |
| Part Number | 52104312 |
SKINDICHT® MR-M, REDUCER, ENABLES THE USE OF CABLE GLAND WITH SMALLER CONNECTION THREADS THAN THE EXISTING THREADED HOLES - 52104312
Description :-
Corrects the size difference between the connection thread of a cable gland and the threaded hole in an enclosure.
Provides flexibility in the selection of a cable gland, as the selection is independent to the threaded hole of the enclosure.
Article numbers ending in "LF" are lead-free product alternatives with the same product properties. "Lead-free" articles do not
contain lead, which is currently still allowed to make up to four percent in copper alloys. It could be banned in the future according to
the RoHS Directive.
Key Features :-
- ⦁ Space requirement
- ⦁ Reliability
- ⦁ Connector with standard housing unit
Application range :-
- ⋇ For use with a metric cable gland whose connection thread is smaller than the existing threaded hole.
- ⋇ Withstands high chemical and mechanical stress.
Download PDF Spec Sheet
