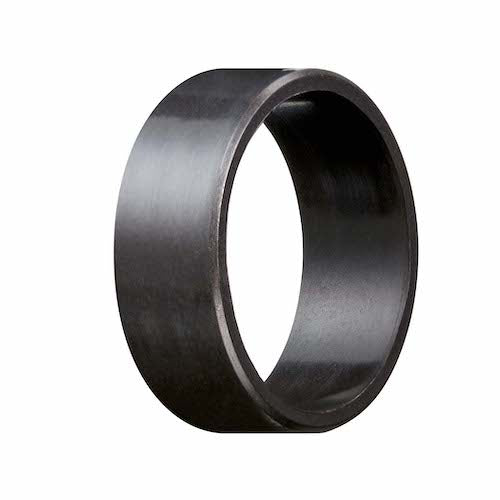

iglide® T500, sleeve bearing, mm
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support

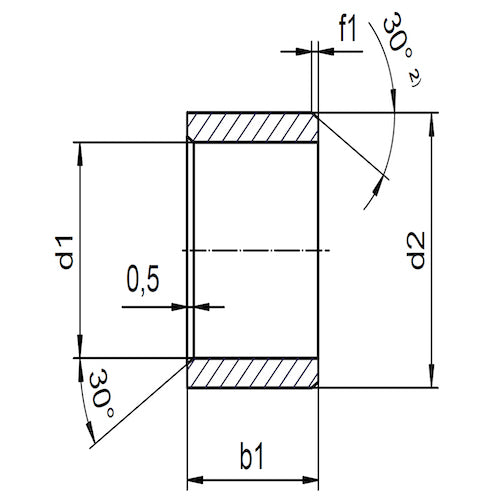

DIMENSIONS:
|
Length of bevel (f) |
0.3 mm |
| Outer diameter d2 [mm] | 7.0 mm |
| Bearing length b1 [mm] | 3.50 mm |
| Ø d1 |
4.0 mm |
| Bevel angle | 30.00 ° |
PRODUCTION AND INSTALLATION TOLERANCES:
| b1-Tolerance | h13 |
| Housing bore tolerance |
0 +0.015 mm, H7 |
| Tolerance shaft |
0 -0.030 mm. h9 |
| d1 after press-fit (max.) | 5.058 mm |
| d1 after press-fit (min.) | 5.010 mm |
| Housing bore (max.) | 7.015 mm |
| Housing bore (min.) | 7.000 mm |
| Shaft size (max.) | 5.000 mm |
| Shaft size (min.) | 4.970 mm |
Description:
- Over 250 dimensions available from stock
- Temperature resistant from -212 °F to +482 °F in continuous operation
- Universal resistance to chemicals
- High compressive strength
- Very low moisture absorption
- Excellent wear resistance through the entire temperature range
iglide® T500 is defined by its combination of high temperature resistance with compressive strength, along with high resistance to chemicals. iglide® T500 is designed for higher speeds than other iglide® bearings.
Features:
- Up to 21755 psi static, 150 MPa static
- Temperature resistant from -212°F to +482°F in continuous operation
- Universal resistance to chemicals
- High compressive strength
- CO2 equivalent: per piece available
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
