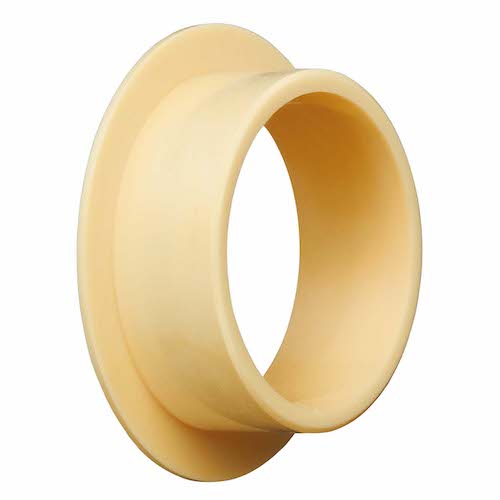

iglide® J3, sleeve bearing with flange, mm
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support

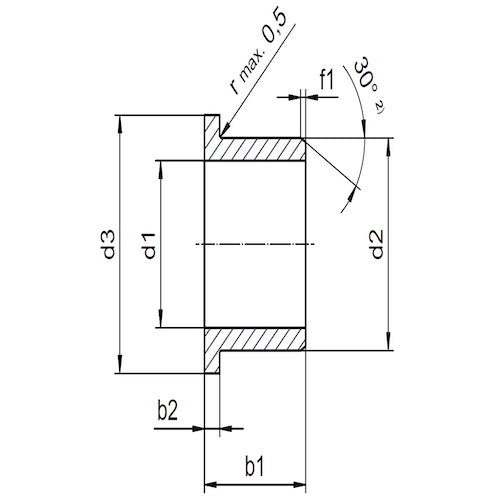

DIMENSIONS:
|
Length of bevel (f) |
0.3 mm |
| Outer diameter d2 [mm] | 3.5 mm |
| Flange diameter d3 [mm] | 5.0 mm |
| Bearing length b1 [mm] | 5.00 mm |
| Flange thickness b2 [mm] | 0.75 mm |
| d1-Tolerance bearing |
+0.014 +0.054 mm, E10 |
| Ø d1 |
2.0 mm |
| Bevel angle | 30.00 ° |
PRODUCTION AND INSTALLATION TOLERANCES:
| d1-Tolerance bearing |
+0.014 +0.054 mm, E10 |
| d3-Tolerance | d13 |
| b1-Tolerance | h13 |
| b2-Tolerance | h13 |
| Housing bore tolerance |
0 +0.012 mm, H7 |
| Tolerance shaft |
0 -0.025 mm. h9 |
| d1 after press-fit (max.) | 2.054 mm |
| d1 after press-fit (min.) | 2.014 mm |
| Housing bore (max.) | 3.512 mm |
| Housing bore (min.) | 3.500 mm |
| Shaft size (max.) | 2.000 mm |
| Shaft size (min.) | 1.975 mm |
Description:
- Low coefficients of friction
- Good liquid media resistance
- very little humidity absoption
- PTFE-free
- Lubrication and maintenance-free
- Standard range from stock
iglide® J3 is a material with improved wear resistance at low to medium loads and high speed. The lifetime is up to 300 % longer than iglide® J – the proven top endurance runner material.
Features:
- The new endurance runner: specialist for pulsating loads
- Low coefficients of friction
- Good liquid media resistance
- very little humidity absoption
- CO2 equivalent: per piece available
