| Category | Instrumentation |
| Classifcation | General Purpose |
| Installation | Top Wall |
| Material | PVDF |
| Mount | 1" Thread |
| Output Type | 4-20mA / Relay |
| Power Supply | 24 VDC |
| Series | DL14 |
| Technology | Ultrasonic |
| Type of product | Level Transmitter |
| Part Number | DL14-01 |
Description

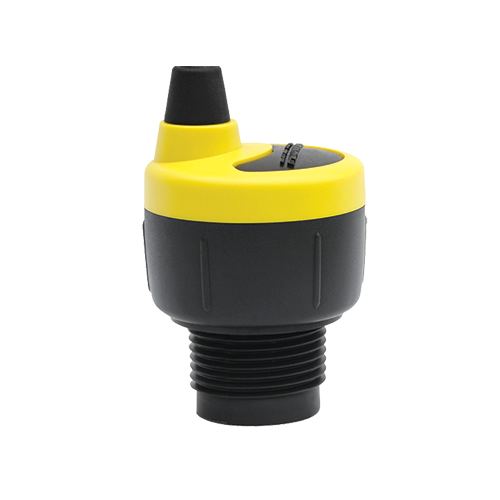

Flowline's EchoPod DL14 general purpose ultrasonic transmitter provides continuous level measurement up to 49.2 (1.25m) with a 4-20 mA signal output and four relays, and is configured via our free WebCal software. Each relay is fully configurable for automatic fill, empty or alarm functions, and the embedded level controller may lower cost by replacing external control hardware. This non-contact liquid level sensor is well suited for corrosive, sticky or waste liquids, and is selected for chemical feed, IBC or drum, skid or machine and cooling tower applications.
Features
⦿ Level measurement, switch and control functions up to 49.2 (1.25m)
⦿ Configuration is fast and easy via WebCal software and USB adapter
⦿ Narrow 2 beam width and short 2 dead band optimized for small tanks
⦿ Four programmable relays for switch, pump or valve control and fail-safety
⦿ PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
