4/0 Structured Ground Grid Con-Service Post Two-Conductors Copper SP2-4/0-Q (Pack Of 25)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

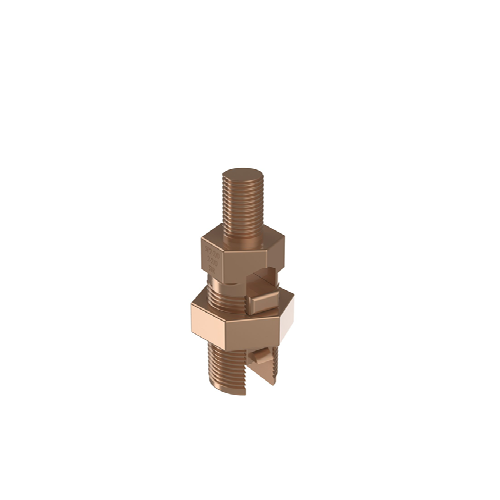

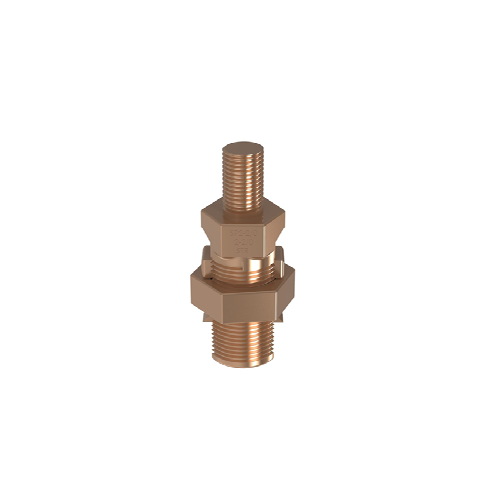

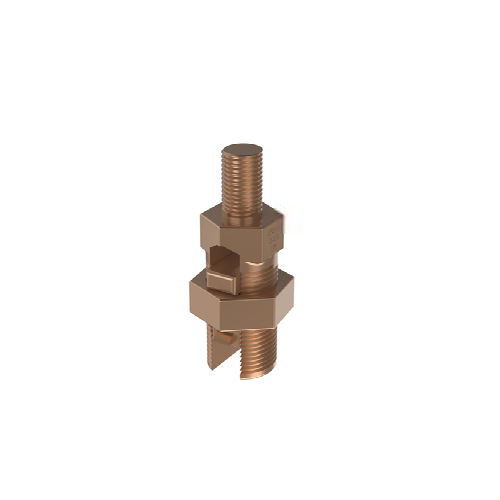

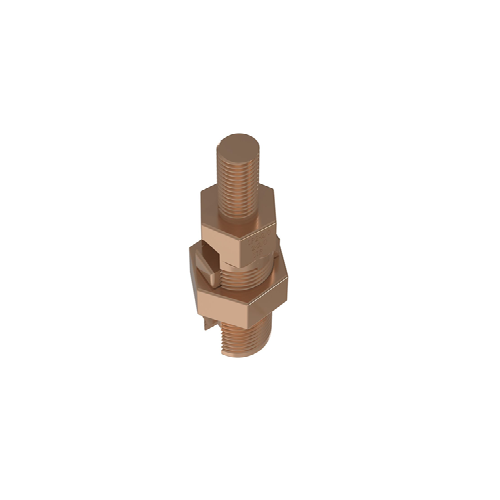

The SP2-4/0-Q Service Post Grounding Lug is designed for grounding two copper code conductors to steel structures, busbars, transformers. The true hex design for body and nut hex provides correct fit with socket, box, or open-end wrenches, resulting in proper torquing of electrical connection. The pressure bar provides a secure connection on a full range of conductor combinations used with each Lug providing a premium wire pull-out strength. UL Listed for grounding and bonding.
Specification :
| Sub Brand | StructuredGround |
| Material | Copper |
| Maximum Copper Conductor Size (AWG STR) | 4/0 |
| Minimum Copper Conductor Size (AWG SOL) | 1 |
| Overall Length (In.) | 2.25 |
| Overall Length (mm) | 57.2 |
| Hex Size (In.) | 1.38 |
| Hex Size (mm) | 35 |
| Stud Length (In.) | 1 |
| Stud Length (mm) | 25.4 |
| Application | Utility/Ground Grid |
| Standards Met | cULus Listed - 467, DB Rated |
| Product Type | Grounding Connector |
Features :
• Offered with standard and long stud lengths to accommodate a variety of mounting applications. Wide range-taking capabilities minimizes inventory requirements.
• True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection.
• Pressure bar provides a secure connection on a full range of conductor combinations used with each connector providing premium wire pull-out strength.
Download PDF Spec Sheet
