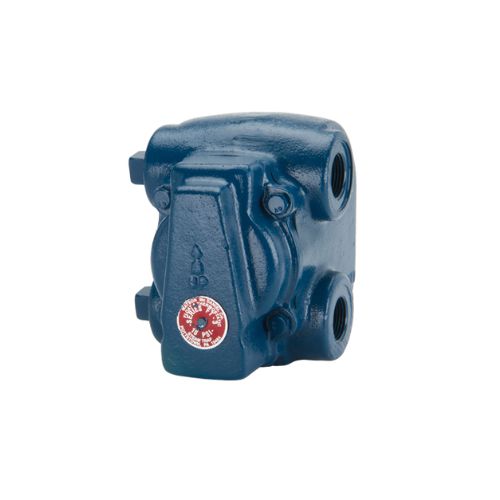

3/4 Inch FT Series Float And Thermostatic Steam Trap NPT FT3-015-13-N

Product Information

Specification

About:

• FT Series steam traps are designed for operating pressures up to 75 PSIG.
• These float and thermostatic (F&T) traps are ideal for lower-pressure HVAC and light industrial process applications, including unit heaters, water heaters, pressing machines, heat exchangers, and coils.
• For drip applications, such as draining steam mains and steam supply lines, the 3/4” FT-075 (FT73-075-13-N) is recommended.
• F&T traps offer excellent air-handling capability, making them a superior choice over inverted bucket traps for most process applications.
• FT Series traps feature a dual inlet-outlet H-pattern connection, providing greater flexibility in installation.

Also Known As:

FT Series Float And Thermostatic Steam Trap, FT Series F&T Steam Trap, FT Series Float And Thermostatic Trap, FT Series Float Thermostatic Steam Trap, FT Series Thermostatic Float Trap, FT Series Float And Thermo Trap.

Specification:

Features:

• H-pattern design allows piping from either side of the steam trap (there are two inlet ports at top and two outlet ports at bottom)
• F&T traps have excellent air handling capability allows air to be discharged rapidly and steam to enter the system quickly during start-up
• Welded stainless steel thermostatic air vent resists shock from waterhammer
• In-line repairable (all internals are attached to cover)
