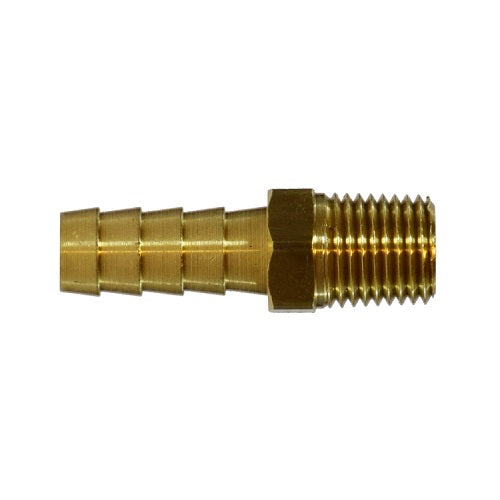

3/4" Hose X 1" NPTF Hose Barb X Male Adapter Brass Fittings 32316
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| A: | 2.55 |
| B: | 1.15 |
| Hex: | 1.37 |
| Part Number: | 32316 |
| Hose Id X Male Nptf: | 3/4” x 1” |
| Approx Weight: | 0.380 LBS |
| Shape: | Straight/Connector |
| Note: | These are not Lead Free |
3/4" X 1" HoseBarb X Male Adapter Brass Fittings 32316
Description:
3/4 X 1 HOSE BARB X MALE ADAPTER
Also Known As:
Adapter , HoseBarb Adapter , Adapter Fitting, Male Adapter, Brass Fittings
• Temperature and Working Pressure Ranges
From -400 F to + 1600 F at 150 PSI maximum.
• Tolerance
+/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Note: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
• Assembly Instructions
1- Cut hose cleanly and squarely to length.
2- Slide clamp on hose.
3- Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4- Position hose clamp as shown and secure with a screwdriver or wrench. Maintain “A” dimension noted below for proper clamp positioning. (Diagram/Reference is to the right)
View Catalog Page
