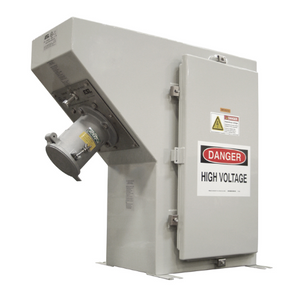

200A 480VAC Single-Gang Power Assembly
Designed for high-performance industrial applications, this 200A 480VAC single-gang assembly delivers reliable and secure power distribution. Featuring an Appleton ADR20034 receptacle (200A, 600VAC) and a 200A circuit breaker with 65,000AIC @ 480VAC and shunt trip, it ensures superior protection and functionality. Built for harsh environments, it meets IP56 (IEC 529) and Type 4X (NEMA 250) standards, with certifications from UL 50/508 and CSA 22.2. The assembly includes pressure-type screw terminals for (3) phase and (1) ground connection, providing a robust and efficient power solution for demanding industrial settings.
Also known as:
Shore Power, power assembly, 200A power assemblies, 1 gang power adapter, 1-gang power adapter, shipyard power assembly, Industrial power assembly.
Product Information:
| Amperage | 200 |
| Voltage | 480 AC |
|
Terminals |
3 Phase, 1 Ground Pressure |
| Enclosure Frame | Stainless Steel |
| Contact Carrier | Polyster w/ fiberglass |
| Contact Sleeves | Brass |
| Screw Cover, Receptacle Housing | Aluminum (Copper free) |
| Gaskets, Cover Seals | Neopren (CR) |
Features:
• Heavy Duty Stainless Steel Enclosure Resists Corrosion & Abuse
• Electrically – Interlocked Power Module with Manual Disconnect
• UL Listed Circuit Breaker Protects Operator & Equipment
• Nickel Plated Brass Contacts & Unique Outlet Design
• Mates with Appleton AP20034CD Male Plug
Approvals:
• UL/cUL Listed Module
• UL 489 Listed / CSA Certified Molded Case Circuit Breaker
• UL Listed Receptacles
