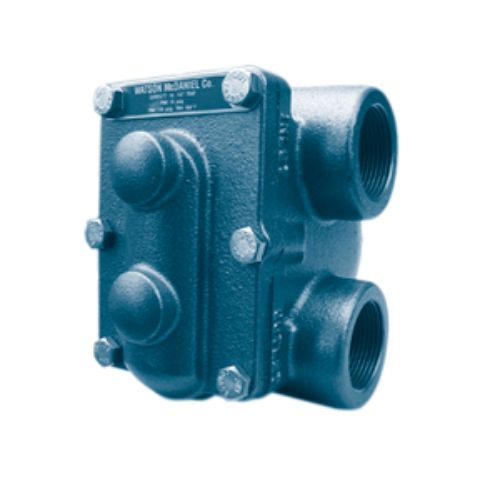

2" Float & Thermostatic Steam Trap NPT WFT-030-17-N

Product Information

Specification

2"  Float & Thermostatic Steam Trap NPT

Describtion

The WFT Series with parallel port connections have been specifically engineered for the efficient removal of condensate and air in HVAC and industrial process applications. These traps feature a high-quality welded stainless steel thermostatic air vent and stainless steel components. Designed for easy maintenance, the WFT Series traps are fully repairable while remaining in-line. They are available in 3/4” to 2" NPT connection sizes. The trap design incorporates a float and thermostatic mechanism with a cast iron body and parallel piping configuration. The thermostatic air vent is made of welded stainless steel, and all internal parts are constructed from stainless steel with a hardened seat area. Additionally, the trap is designed to be repaired in-line.

Features

• Excellent air handling capability allows air to be discharged rapidly so steam can enter the system quickly during start-up.
• In-line repairability is simplified by having all internals attached to the cover.
• F&T traps discharge condensate immediately as it is formed no condensate will back up into the system.
• All stainless steel internals with hardened seat and wear parts.
• Excellent air handling capability allows air to be discharged  rapidly so steam can enter the system quickly during start-up.
