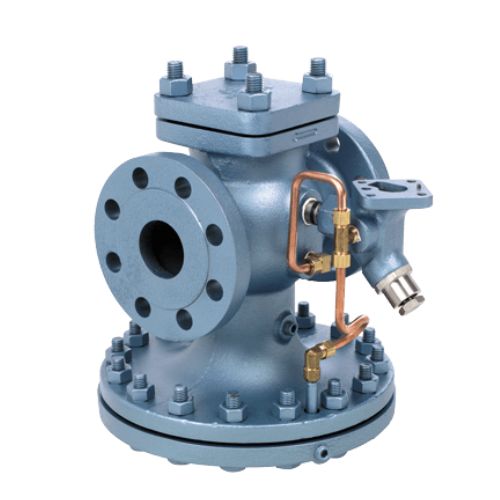

1 Inch Pilot Operated Pressure Regulating Valve HD-14-N
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
The HD Series Pilot-Operated Regulating Valve was designed for extremely accurate control of temperature and pressure in steam service applications. The HD-Series is made of Ductile Iron for extended pressure and temperature ratings when compared to cast iron. Several different control pilots can be mounted to the valve to control pressure, temperature, or a combination of both. When two or more pilots are used together (both a pressure and a temperature pilot) an additional pilot adapter for the second pilot is required (must indicate when ordering). The most common pilots are the PP-Pilot for pressure reducing, and the PT-Pilot for temperature control.
Also Known As:
Pilot-Operated Pressure Control Valve, Pilot-Operated Regulator, Pilot-Controlled Pressure Reducing Valve, Pilot-Operated Pressure Reducing Regulator, Pilot-Assisted Pressure Regulator.
Specification:
| Type | Pilot Operated Pressure Regulating Valve |
| Size | 1" |
| Connection | NPT |
| Max. Operating Pressure (psig) |
300
|
| Design Pressure |
450 PSIG @ 650°F
|
| Temperature Rating |
650°F @ 450 PSIG
|
| Part No | HD-14-N |
Features:
• No external power source is required.
• Pressure & temperature pilots can be used in combination, eliminating the need for a separate pressure and temperature regulator.
• Ductile iron body for higher pressure ranges and increased safety when compared to cast iron.
• Full port strainer and blowdown valve on pilot adapter for ultimate protection against dirt and scale.
• Hardened stainless steel trim (55 Rc) for extended life even in the most demanding applications.
• The innovative design allows the pilot to be mounted on either side of the regulator and is easily field-reversible without having to rebend tubing.
• Tubing and pilot adapter is pre-mounted on main valve. The control pilot requires only four bolts to complete the installation.
Download PDF Spec Sheet
