Garrie AI: Your Cable Guide
| Type | Kynar Wire |
|---|---|
| UPC | 811490011014 |
| Insulation Type | Kynar |
| Wire Gauge | 30 AWG |
| Insulation Length | 1" |
| Each End Strip Length | 1" |
| Overall Length | 7" |
| Overall Diameter | 0.020" |
| Insulation Thickness | 0.005" |
| Standards | UL 1423 |
| Dimensions | 0 in x 0 in x 0 in |
| Part Number | 30-B-50-010 |

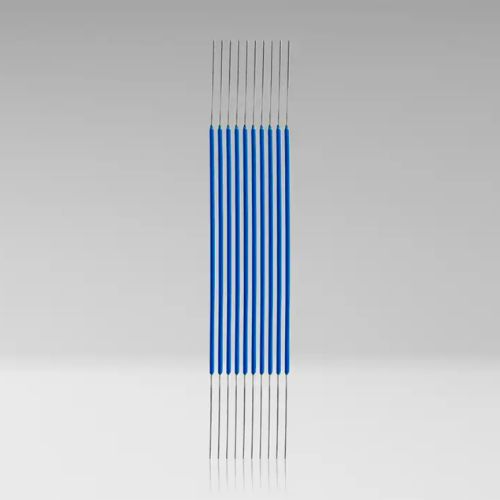

1" 30 AWG Kynar Blue Wire Pre-Cut
Description:

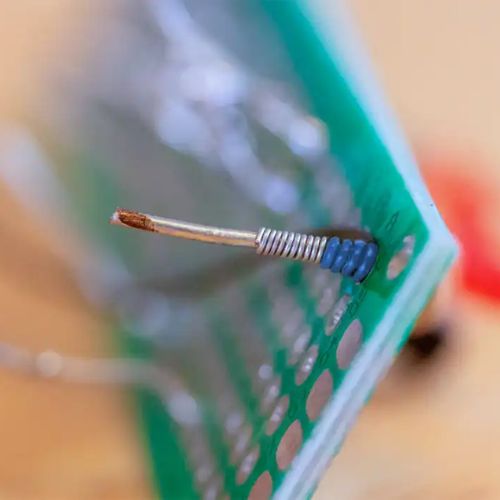

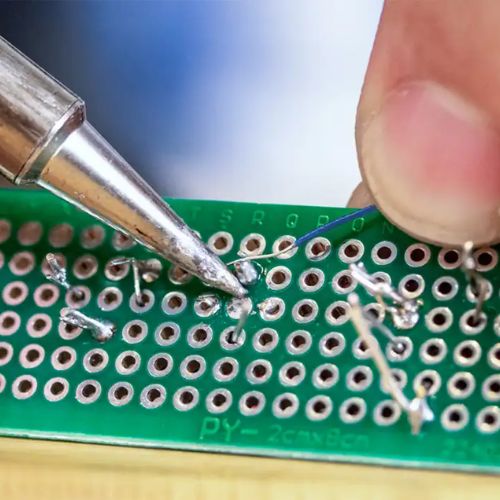

Used in applications where flexibility, strength, and low weight are required, Kynar wire is ideal for wire-wrap, power supply, medical, and aerospace applications. It is also commonly used for circuit board prototyping due to its lighter weight and smaller overall diameter. Kynar insulation provides excellent mechanical performance across a wide temperature range and resists a broad spectrum of chemicals, including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic and aromatic hydrocarbons. These qualities make Kynar wire an excellent choice for use in even the harshest environmental conditions.
Features:
⦿ OHFC silver-plated copper conductor
⦿ Exceptional electrical conductivity and flexibility
⦿ Kynar insulation rated up to 105 °C
⦿ High heat and abrasion resistance
⦿ Meets or exceeds UL 1423 standards
⦿ Center-insulated wire with stripped ends on both sides
⦿ 1 in insulated section, 1 in stripped length per end
⦿ Includes 50 pre-cut, pre-stripped wires
