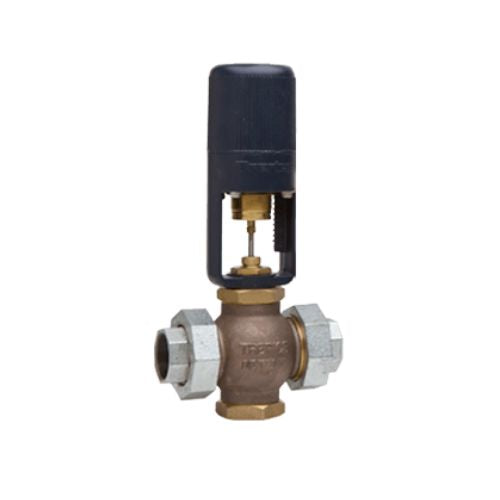

1/2 Inch Direct Operated Temperature Regulating Valve EA01-A02
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Temperature Regulating Valve |
| Type | NPT |
| Port Type |
1/8”
|
| Max. Operating Pressure (psig) |
250
|
| Temperature Range |
40°F to 70°F
|
| Part No | EA01-A02 |
About:
The Ambi-Regulator is a direct-operated regulator similar to the W91/94 Series, but without the bulb and capillary. This design enables the thermal assembly to sense ambient conditions, allowing the valve to open or close based on surrounding temperatures. A common application is in steam tracing lines, where the valve closes when ambient temperatures rise above the field-adjustable setpoint. The Ambi-Regulator can also serve as a freeze protection device on water lines, opening when ambient temperatures drop below the adjustable set temperature.
Also Known As:
Direct-acting pressure regulator, direct-acting pressure-reducing valve, spring-loaded pressure regulator, direct spring-operated regulator, mechanical pressure regulator.
Features:
• Easy to install with minimal instrumentation.
• Designed for industrial or harsh environments.
• Uses the expansion or contraction of a thermostatic element (wax, gas, or liquid) to modulate the valve.
• Regulates flow based on sensed temperature.
