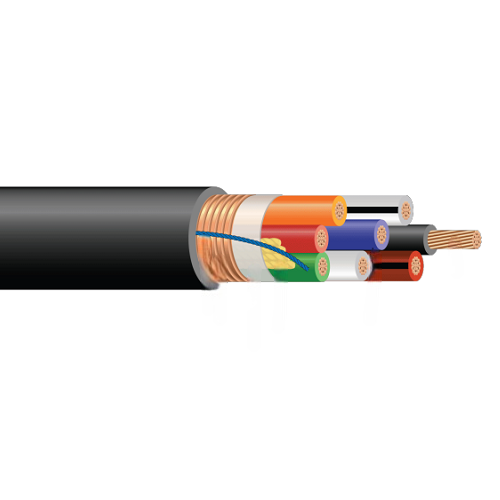

Multi Conductor Copper FR-XLPE LCT Shielded CPE Jacket Control Cable 600V

Multi Conductor Copper FR-XLPE LCT Shielded CPE Jacket Control Cable 600V

Applications:

These 600-volt control cables are designed for versatile use in both wet and dry environments, including conduits, ducts, troughs, trays, direct burial, and aerial installations supported by a messenger. Engineered for high performance, they operate reliably at conductor temperatures up to 90°C during normal use, 130°C under emergency overload, and 250°C during short circuit conditions. UL-rated for safety, they are approved for use in Class I, II, and III, Division 2 hazardous locations in accordance with NEC Articles 501 and 502. Additionally, UL-listed constructions with three or more conductors meet TC-ER requirements for exposed runs per NEC 336.10.

Also Known As:

600V control cable XLPE shielded, FR-XLPE copper control cable 600Vmulti-conductoror shielded control cable, CPE jacket control cable 600V, LCT shielded XLPE cable 600V, 10awg copper control cable shielded, XLPE insulated control cable 600V, Flame retardant XLPE control wire, 600V shielded control cable specs, FR XLPE CPE jacket industrial cable.

Standards:

• ASTM B3 Standard Specification for Soft or Annealed Copper Wire
• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• UL 44 Thermoset-Insulated Wires and Cables
• UL 1277 Electrical Power and Control Tray Cables
• UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
• ICEA S-58-679 Control Cable Conductor Identification Method 1 Table 2
• ICEA S-73-532 Standard for Control, Thermocouple Extension and Instrumentation Cables
• ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
• IEEE 1202 FT4 Vertical Tray Flame Test (70,000 Btu/hr) and ICEA T-29-520 - (210,000 Btu/hr)
• VW-1 (Vertical-Wire) Flame Test

Construction:

Conductor:

7 strands class B compressed bare copper per ASTM B3 and ASTM B8

Insulation:

Flame Retardant Cro-Linkeded Polyethylene (FR-XLPE), 30 Mils thick for all cable sizes

Filler:

Polypropylene filler on cables with 5 or less conductors

Binder:

Polyester flat thread binder tape applied for cables with more than 5 conductors

LCT Shielding:

5 mils tape shield

Rip Chord:

Rip chord for ease of jacket removal

Overall Jacket:

Chlorinated Polyethylene Chloride (CPE)
