Stainless Steel Heavy Duty Mechanical Locks With An Extra Long Spindle Panic Access Kit CL500SS
Where are we? 4 Continents 9 Countries

Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Mechanical Locks |
| Code Change Method | Tumblers (Off Door) |
| Buttons | 2 x 6 |
| Codes | Single code storage—2,047 nonsequential combinations available |
| Door Thickness | 35 mm - 60mm (1 3⁄8" - 2 3⁄8") |
| Finish | Stainless Steel, Polished Brass |
| Handed | Non-Handed—Locks will fit doors hung on the left or right |
| Keypad | 12 stainless steel buttons |
| Latch Type | Mortice Lock (Sash) |

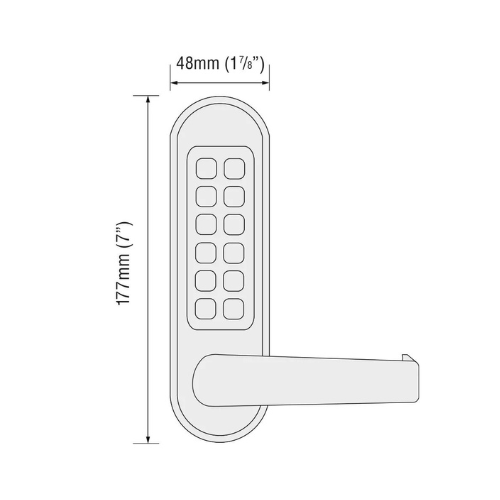

| Lock Dimensions | 7" (177mm) x 1 7⁄8" (48mm) |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Spindle | Two-part 5⁄16" (8 mm) spring-loaded spindle |
| Suitable For | Internal, External |
| User Types | Code |
Description

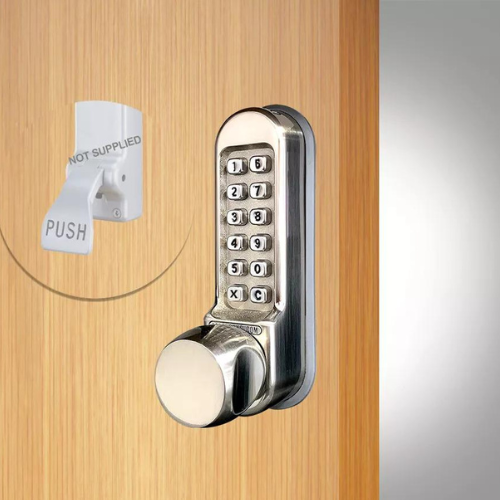

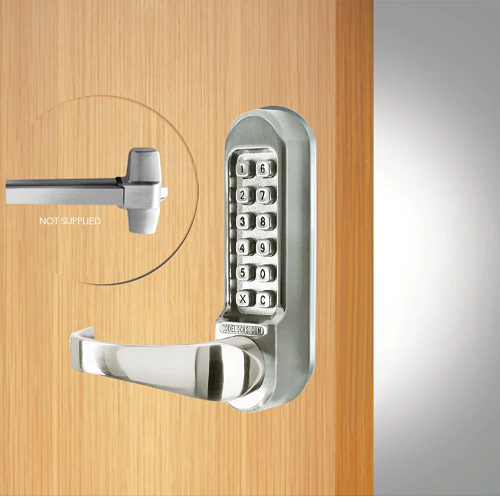

Heavy-duty mechanical locks with an extra-long spindle are provided to work with most single-point panic pads or bars. Heavy-duty mechanical locks with large full-size lever handles, allowing use as the primary lock on doors. An extra-long spindle is provided to work with most single-point panic pads or bars. The outside lever will retract the latch freely until disabled.
Features
• Large full-size lever handles with a return to the door.
• Code-free access option.
• Ball-shaped knob available.
• Suitable for internal and external use.
• Tumbler alignment for easy code change.
• Large three-coil lever return spring suitable for high traffic use.
• Available in stainless steel or polished brass finish.
• Neoprene seals included.
Download PDF Spec Sheet
