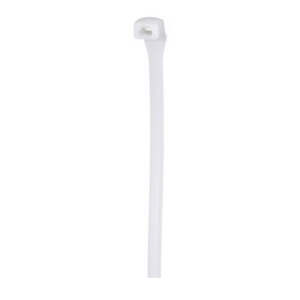

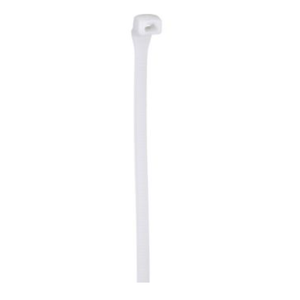

14.0x0.190 Contour-Ty Cable Tie Plenum Nylon 6.6 CBR4S-M (Pack of 1000)

Name: 14.0x0.190 Contour-Ty Cable Tie Plenum Nylon 6.6 CBR4S-M (Pack of 1000)
Brand: Wire Xpress
SKU: CBR4S-M
Price: 301.26 USD
Availability: InStock
Rating: 4.93 (7926 reviews)

Roll over image to Zoom

14.0x0.190 Contour-Ty Cable Tie Plenum Nylon 6.6 CBR4S-M (Pack of 1000)

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: CBR4S-M

Select a Variant

14.0x0.190 Contour-Ty Cable Tie Plenum Nylon 6.6 CBR4S-M (Pack of 1000)

Availability: In stock

Price:

Regular price: $301.26
Sale price: $301.26

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Qty:

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Specifications:

Product Type	Cable Tie
Sub Brand	Contour-Ty
Color	Natural
Environment	Indoor
Material	Nylon 6.6
Overall Length (In.)	14
Overall Length (mm)	355.6
Body Width (In.)	0.19
Body Width (mm)	4.8
Body Thickness (In.)	0.052
Body Thickness (mm)	1.3
Maximum Bundle Diameter (In.)	4
Maximum Bundle Diameter (mm)	101.6
Minimum Bundle Diameter (In.)	0.28
Minimum Bundle Diameter (mm)	7.1
Minimum Loop Tensile Strength (N)	222
Minimum Loop Tensile Strength (lb)	50
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Standards Met	SAE-AS23190A, SAE-AS33671, RoHS Compliant
Military Cross Reference Number	MS3367-38-9
For Use With	GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
Application	General
Part No:	CBR4S-M

Contour-Ty Cable Ties – Nylon 6.6

• For indoor use

• Unique design prevents wire and cable damage

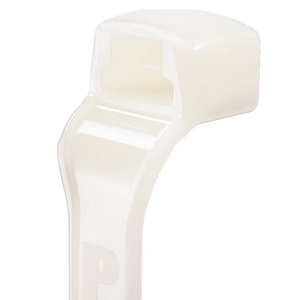

• Low profile head avoids snags and reduces overall bundle size

• Outside teeth and smooth round edges protect cable jacket – ideal for high vibration applications

• Parallel-entry limits exposure to sharp edges and protects ZRUNHUV·DUPVKDQGV

• Fully enclosed head for consistent strength

• Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation

• UL Listed for use in plenum or air handling spaces per NEC

• Nylon 6.6 cable ties in natural and colors meet the testing requirements of SAE Aerospace Standard AS23190 and the dimensional requirements of SAE Aerospace Standard AS33671

Features :

Low profile head avoids snags and reduces overall bundle size, Outside teeth and smooth round edges protect cable jacket — ideal for high vibration applications, Fully enclosed head for consistent strength
