8 AWG CU Compression Terminal Burndy - YA8CL3BOX
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Application | Wire Termination |
| Color Code | Red |
| Connector Type | STANDARD BARREL |
| Die Index | 49 |
| EU RoHS Indicator | Yes |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | COPPER |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Sub Brand | HYLUG |
| Temperature Rating | 194 |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 781810525692 |
|
Part Number |
YA8CL3BOX |

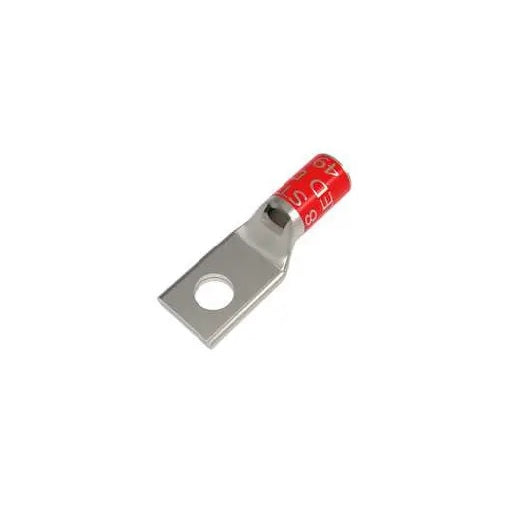

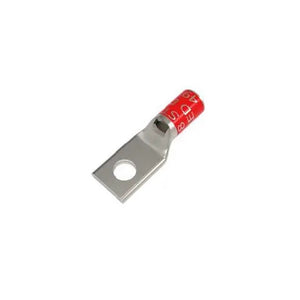

8 AWG CU Compression Terminal Burndy - YA8CL3BOX
Description
8 AWG CU, One Hole, 3/8 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90° Up to 35kV, RED Color Code, 49 Die Index.
Features
• UL Listed 90 DEG C
• 600 V - 35 KV
• 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated
• Wire Strip Length: 1/2 IN, Tongue Angle: Straight
• Package: Box, Die Index: 49
• Temperature Rating: 90 DEG C
• Tools, Die Set Catalog Number
Download PDF Spec Sheet
