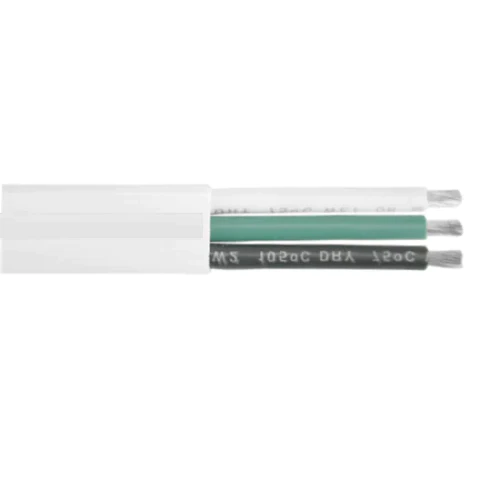

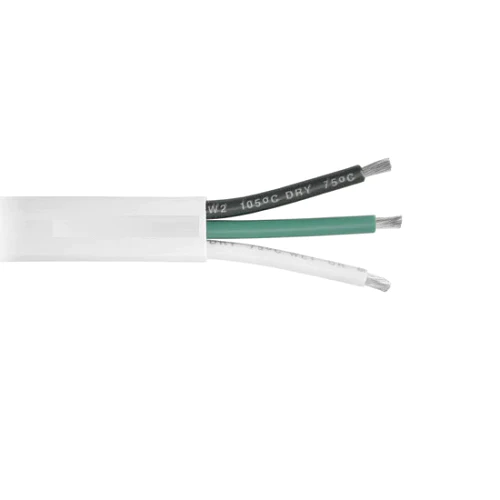

8 AWG 3 Conductor White Jacket Triplex Boat Flat Cable

Name: 8 AWG 3 Conductor White Jacket Triplex Boat Flat Cable
Brand: Pacer Group
SKU: NNCW8/3-B
Price: 4.4 USD
Availability: InStock
Rating: 4.92 (8167 reviews)

Roll over image to Zoom

8 AWG 3 Conductor White Jacket Triplex Boat Flat Cable

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNCW8/3-B

Availability: In stock

Price:

Regular price: $4.40 /FT
Sale price: $4.40 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

8 AWG 3 Conductor White Jacket Triplex Boat Flat Cable

Also Known As:

Triplex Boat Cable, Highly Flexible Cable, Multi Conductor Cable, White Jacket Cable, Tinned Copper Cable, Color Coded Cable, Flat Cable

About:

Triplex boat cable is used for AC circuits in boats and recreational vehicles. manufactures 8 AWG triplex boat cable for easy installation and longevity. How do they achieve this Well, finely stranded tinned copper conductors are used to prevent corrosion. While, at the same time these conductors allow the cable to be flexible. Flexibility is essential when working in enclosed marine spaces. Another important factor of 8 AWG triplex boat cable is the insulation. The PVC insulation is designed to provide protection from fatigue and moisture. This is achieved during the extrusion process. While extruding, fills the voids between conductors. This eliminates the possibility of moisture or air between the wires. As an added bonus, talcum powder is coated on the wires. This is done to allow for the easy removal of the jacket during installation. Perfect for use with multi conductor cable connectors.

Applications:

• UL triplex cable is perfect for AC circuits in boats and recreational vehicles.

Construction:

• Conductor: Annealed Fine Stranded Tinned Copper ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600 V
• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Standards:

• UL Standard 1426
• ABYC: E-11.16
• Coast Guard: 33 CFR part 183
• RoHS Compliant
• UL Compliant

Features:

• Stranded, tinned copper
• Color coded conductors
• Tough PVC Jacket
• Highly flexible
• Easy to strip and route

Specifications:

• Size AWG: 8
• No. of Conductors: 03
• Conductor Stranding: 7x24/0.0100
• Nom. Jacket Thickness: 0.045 Inch
• Nom. Cable O.D. : 0.375 x 0.930 Inch
• Part Number: NNCW8/3-B
