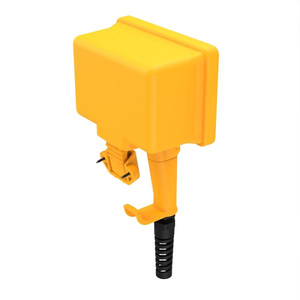

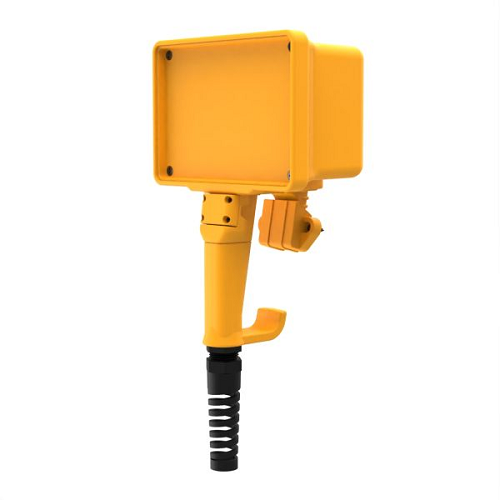

3.96" x 6.62" x 13.43" Waterproof Pendant Enclosure With Switch Cover P30CYL

Product Information

Specification

Also Known As :
Pendant Enclosure also known as Lightweight and corrosion-resistant, often used in less demanding environments. Durable and robust, suitable for harsh industrial conditions.

About :
A handheld enclosure made of heavy-duty materials like metal or reinforced plastic. To the protective outer cover that houses the internal components of handheld devices. In the context of mobile phones and similar devices, it refers to the main part that houses all essential components.

Common Applications: :
• Material: Polyester, Flammability: UL94 5VA
• Watertight enclosure meets or exceeds NEMA 4X & IP67 ratings.

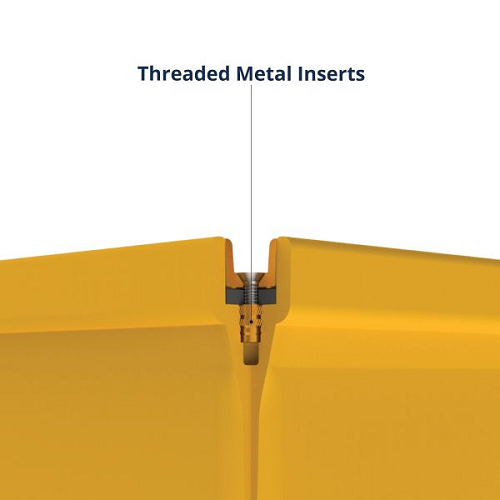

• Extremely durable, Ergonomic handle design, Metal threaded inserts retaining face plate.

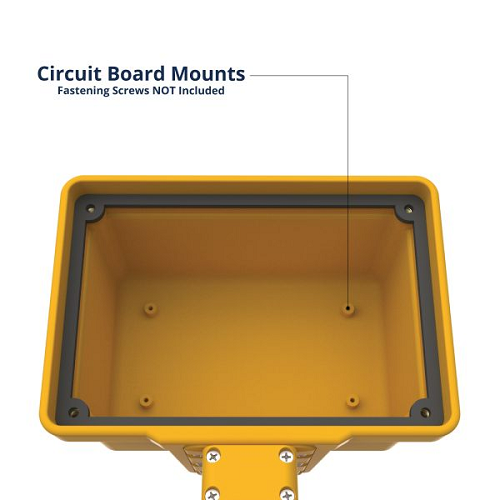

• Circuit board mounts are 0.24in deep and require SCREW #4 X 3/8 (sold by Serpac separately in bags of 4 screws, part #6005-4).

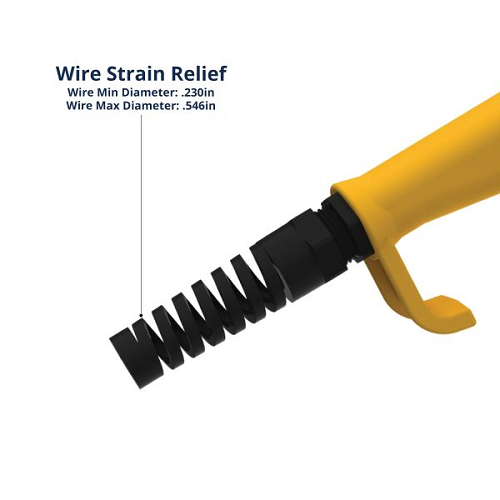

• Wire strain relief accepts cable range from 0.230in to 0.546in.

Standards:
• See User Prints above for technical details including circuit board size and customizable area.

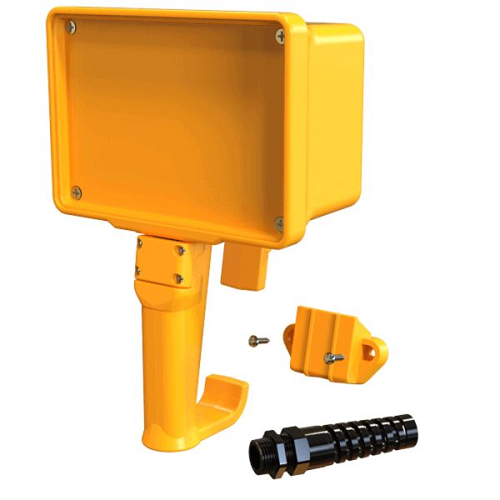

• Handle, Handle screws (6), Handle gasket, Main housing, Face plate, Face plate screws (4), Face plate gasket, Wire strain relief, Wire strain relief gasket, Wall mount, Wall mount screws (2).
• Unit is shipped with Handle/Housing gasket installed. Face plate to housing gasket and • Wire strain relief to handle are user installed.

Construction :
• Designed for comfortable use and easy control.
• Clear markings and possibly windows to see the switch positions.
• Easy to operate, with secure yet accessible openings.
• Indicates the level of protection against the ingress of dust and water.
• Specifies the enclosure's performance in various environmental conditions.

Specification :
• Waterproof IP67

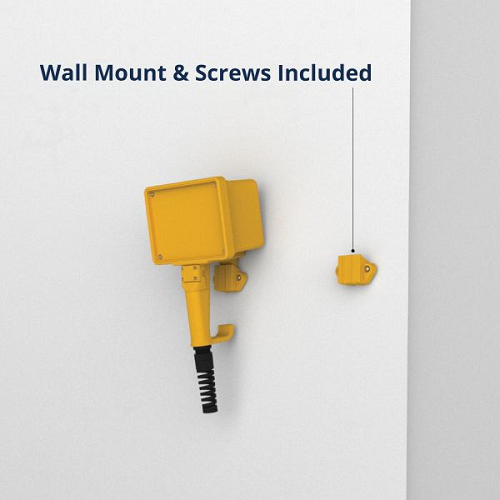

• Wall Mount Included
• Flammability UL94 5VA
• Wire Strain Relief
• NEMA 4X

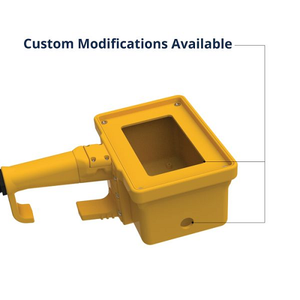

• Custom Modifications
• Color Yellow
• Switch Cover

Features :

Industrial Machinery:
• Used to control machines in manufacturing, processing, etc.
Hoists and Cranes:
• Enables the operator to control the equipment from a safe distance.
Various Equipment:
• Used in a range of other equipment requiring remote control.
Electrical Safety Standards:
• Meets the requirements set by relevant authorities.
Insulation:
• Ensures that operators are protected from electrical shocks.
Custom Controls:
• Can be customized with various types of controls depending on the application.
Sizes and Shapes:
• Available in various sizes and configurations.
Handheld:
• Often designed to be portable and handheld.
Fixed:
• Can also be mounted in a stationary position if needed.
